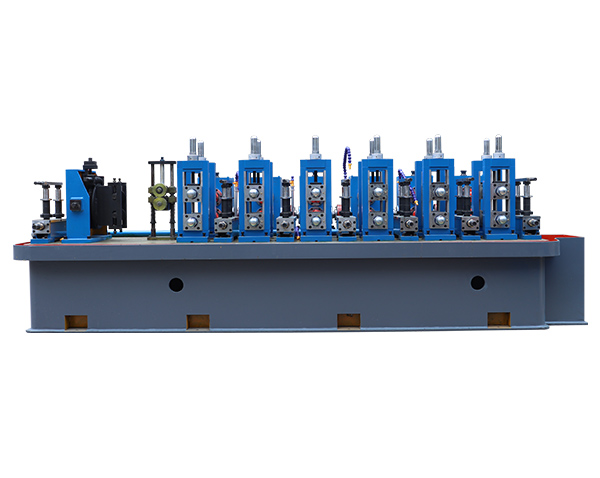

ERW 50K76 High Frequency Pipe Making Machine

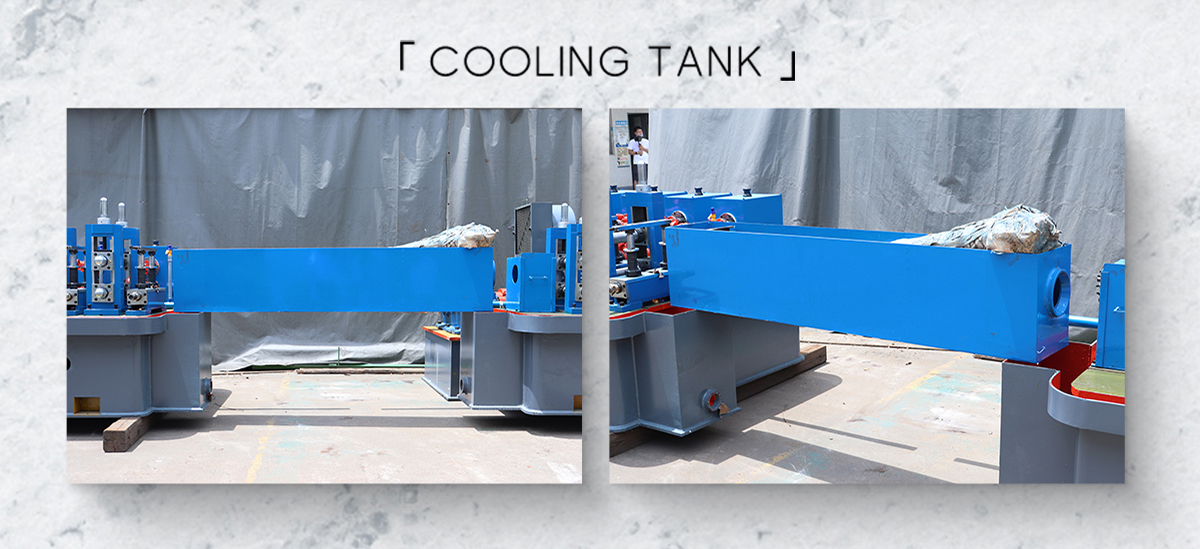

High frequency pipe making machine is the special equipment to make steel strip form into pipe shape through rolling molds, then heated to melting temperature with the proximity effect and skin effect of high frequency, the two sides of the material weld together under the pressure of extrusion molds and finally become the required pipe size through cooling water, sizing molds and straightening molds. The whole tube mill includes equipment from raw material feeding until pipes are cut off and collected, production speed can change according to pipe size. Applicable material: hot or cold rolled carbon steel strip like Q195, Q235,16Mn,etc.

Machine Parts

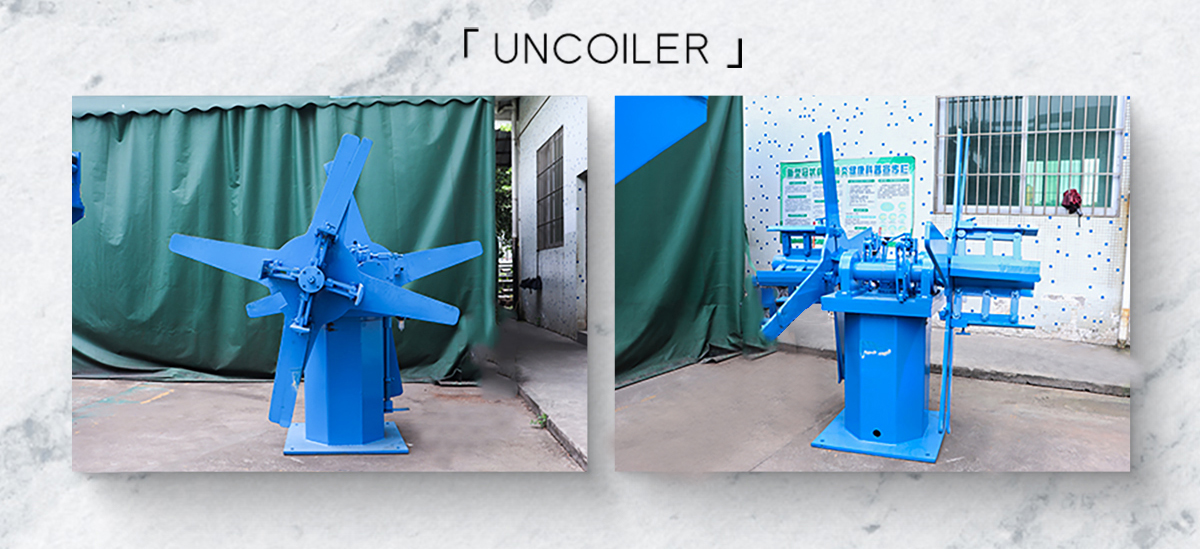

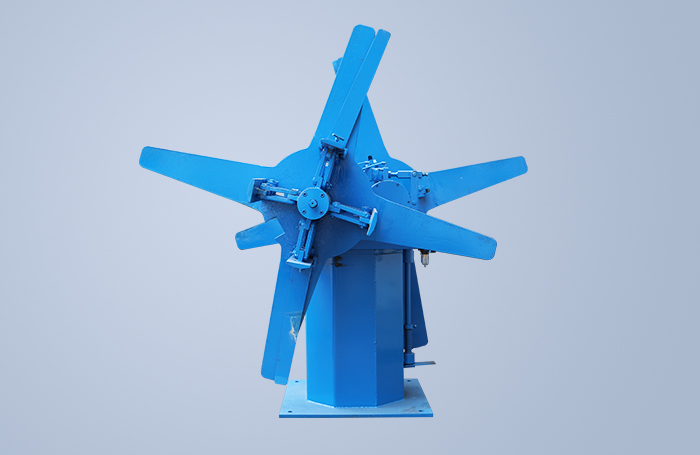

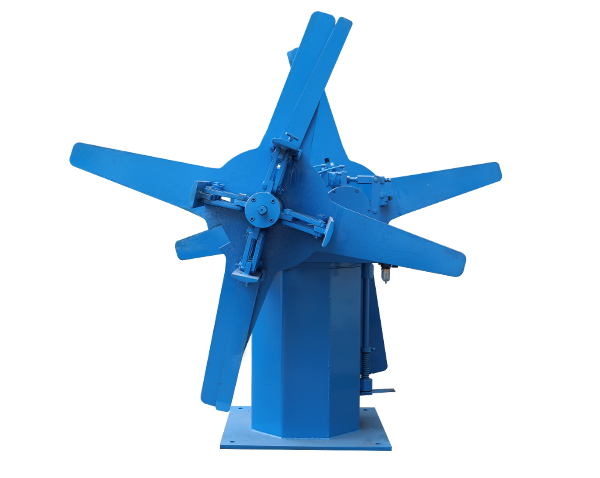

01Un-colier

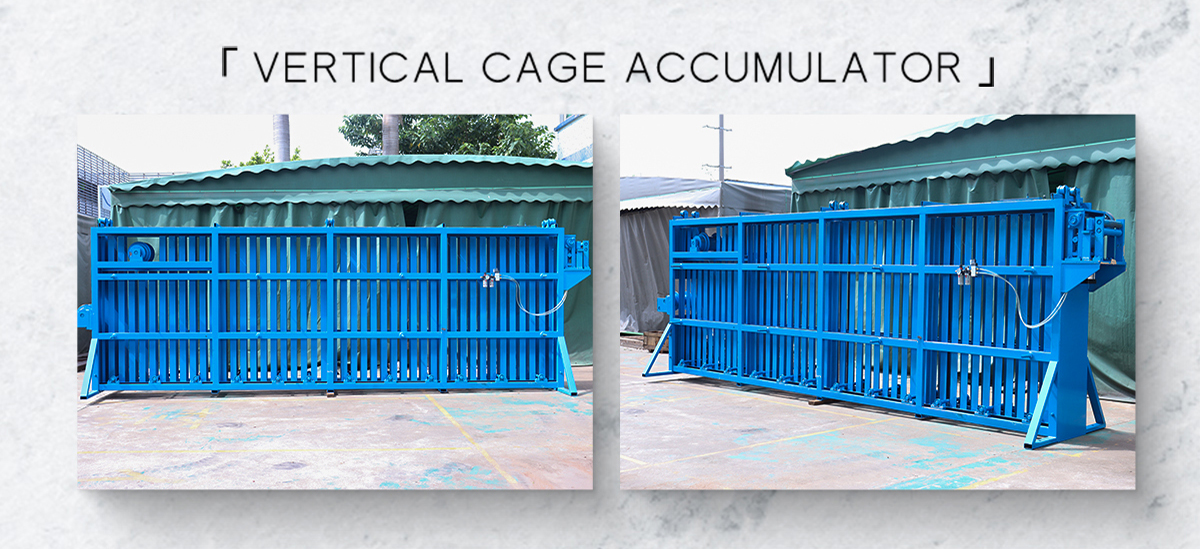

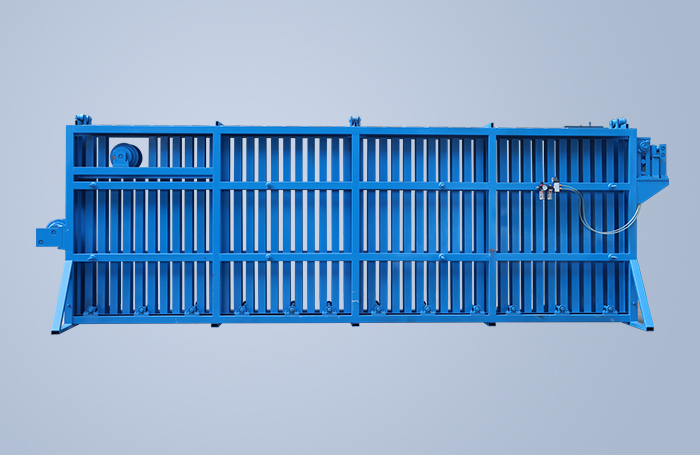

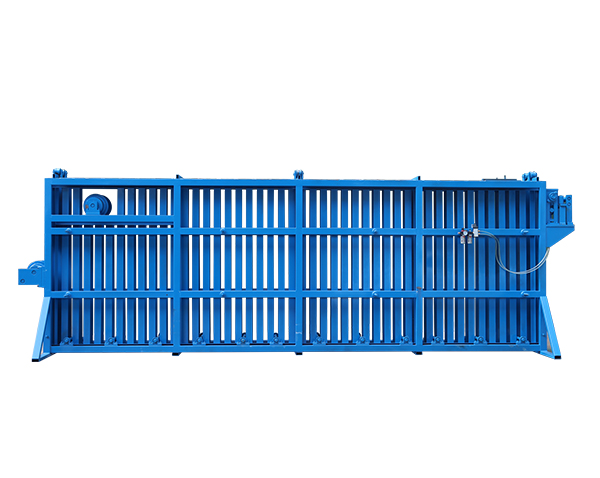

02Vertical Cage Accumulator

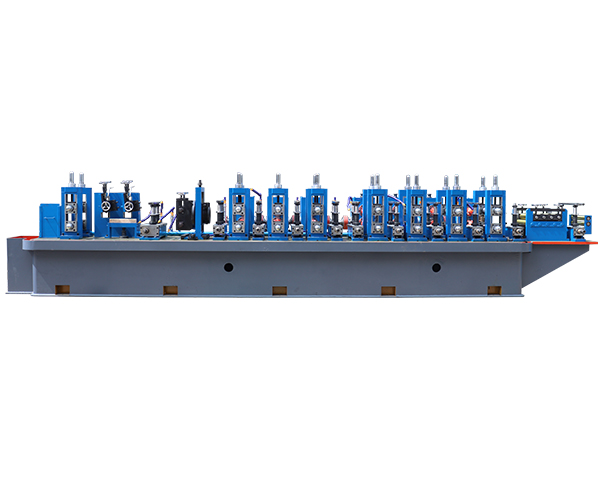

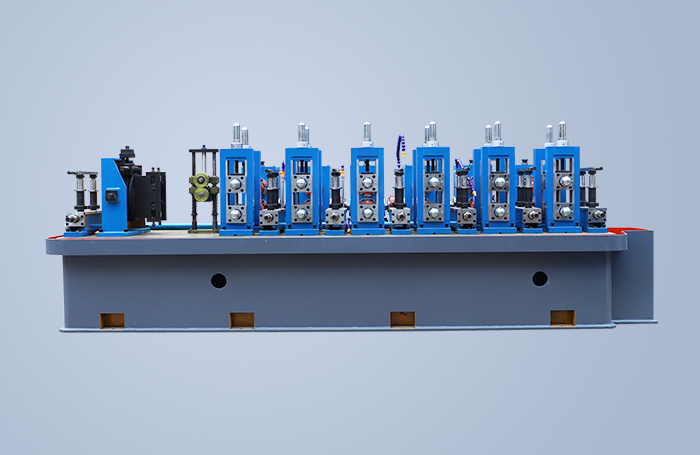

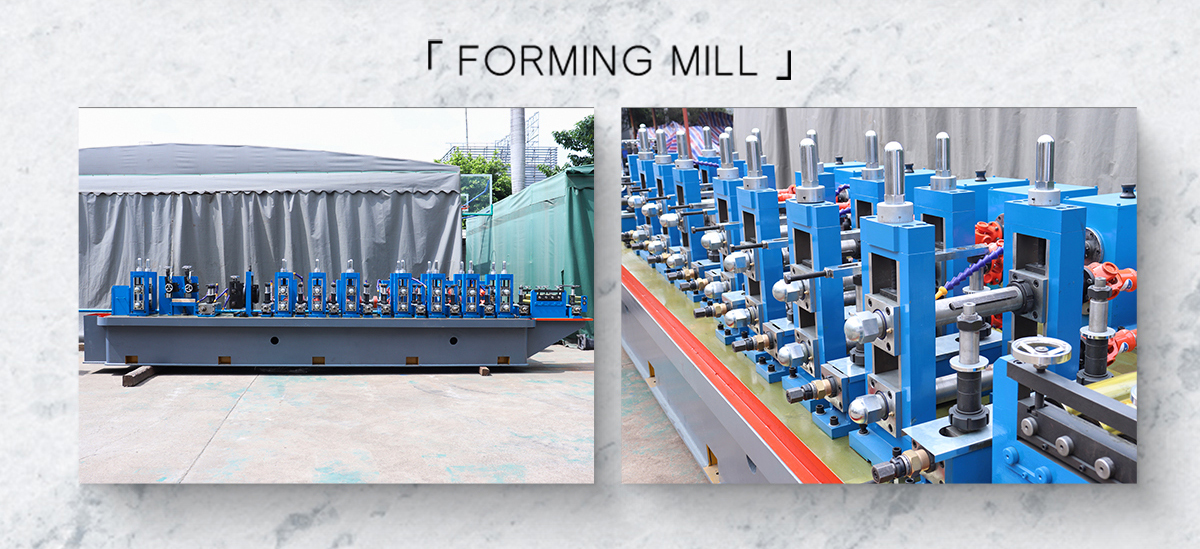

03Forming and Welding Section

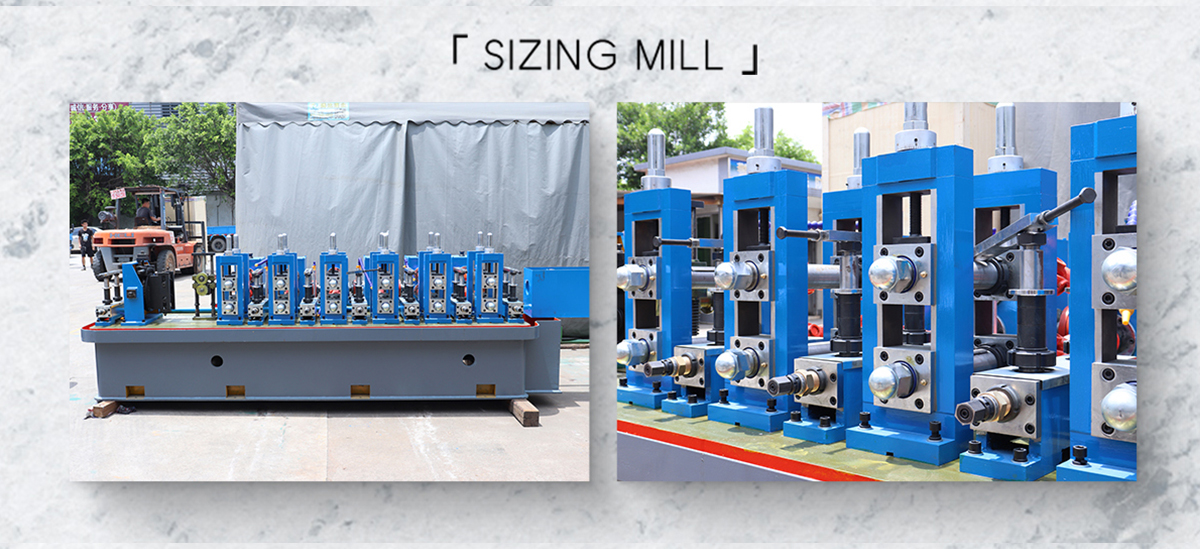

04Sizing Section

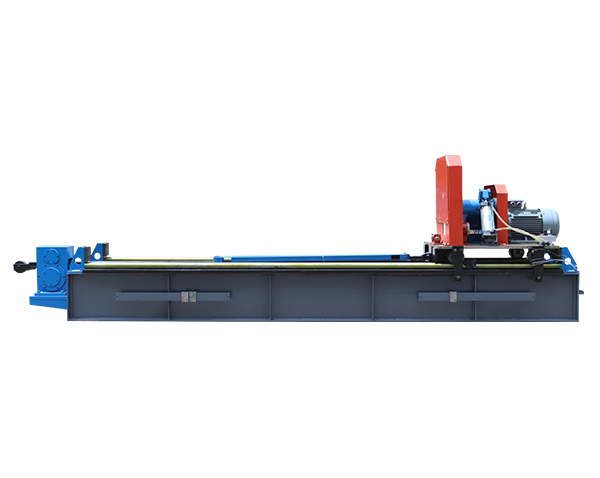

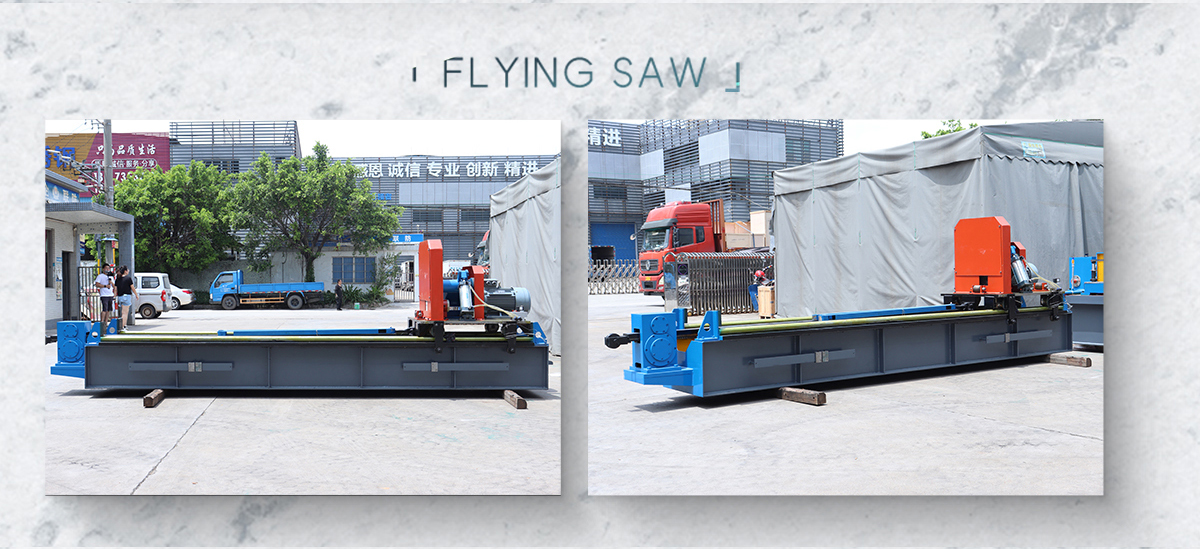

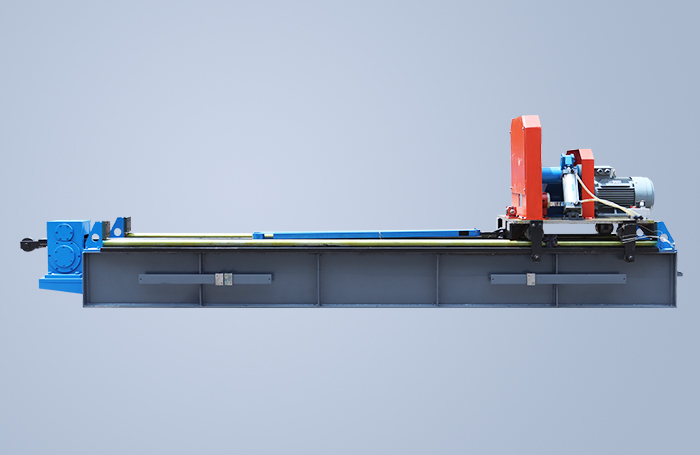

05Cutting Machine

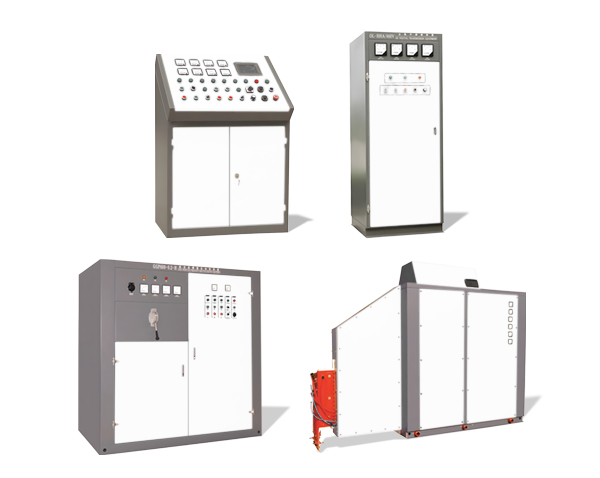

06High Frequency Welding Machine

Product parameters

TUBE MILL product parameters
Machine Model	HF 50 K 76	Round Pipe Diameter	20mm-76mm	Square Pipe Diameter	15mm15mm-60mm60mm 10mm20mm-40mm80mm
Round Pipe Thickness	0.6mm-3.0mm	Square Pipe Thickness	0.6mm-2.2mm	Production Speed	20-100m/min
Main Motor Power	160KW	High Frequency Power	200KW	Material	Q195,Q235,16Mn
Machine Configuration	1.double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7.rolling molds 8.high frequency appliances

Product structure diagram

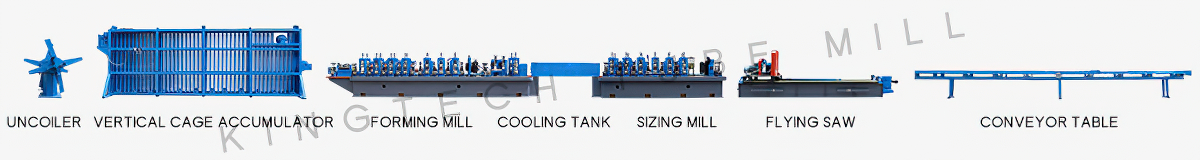

High frequency pipe making machine structure diagram

Structural Anatomy Diagram

Why Choose KingTech Tube Mill?

About KINGTECH Tube Mill

KINGTECH is a professional manufacturer specializing in ERW tube mills, laser tube mills, stainless steel tube mills, and complete steel pipe production lines. With more than 25 years of industry experience, we have supplied reliable tube making solutions to customers in over 100 countries.

KINGTECH Tube Mill Factory in China

KINGTECH Manufacturing Capabilities

Every machine is manufactured under strict quality control procedures. From precision machining and frame welding to assembly and factory testing, every production step is carefully inspected to ensure long-term stability and reliable performance.

Production Process: Raw Material → CNC Machining → Welding → Assembly → Machine Testing → Packaging → Delivery.

ERW Tube Mill Manufacturing

Trusted by Customers Worldwide

Our tube mill machines are operating successfully in more than 100 countries and regions, serving manufacturers in construction, furniture, automotive, water supply, and industrial applications.

From Southeast Asia and the Middle East to South America, Africa, and Europe, customers trust KINGTECH for reliable equipment, stable performance, and professional technical support.

KingTech Tube Mill Global Projects

Professional Installation & Technical Support

Our experienced engineers provide complete installation, commissioning, operator training, and production guidance.

Whether your factory is located in Asia, South America, Africa, Europe, or the Middle East, our technical team can help you quickly start production and maximize equipment performance.

Tube Mill Installation Service

Secure Packaging & Worldwide Delivery

Every machine is carefully protected before shipment using anti-rust treatment, moisture-proof packaging, and reinforced loading methods. Our experienced logistics team ensures safe transportation by container or truck, helping equipment arrive at customers' factories in excellent condition.

Tube Mill Container Loading

Customer Testimonials

Customers choose KINGTECH not only for reliable machines but also for professional service. Many customers appreciate our fast technical response, customized engineering solutions, stable machine performance, and long-term after-sales support. Their successful projects continue to strengthen our reputation worldwide.

Customer Feedback for ERW Tube Mill
