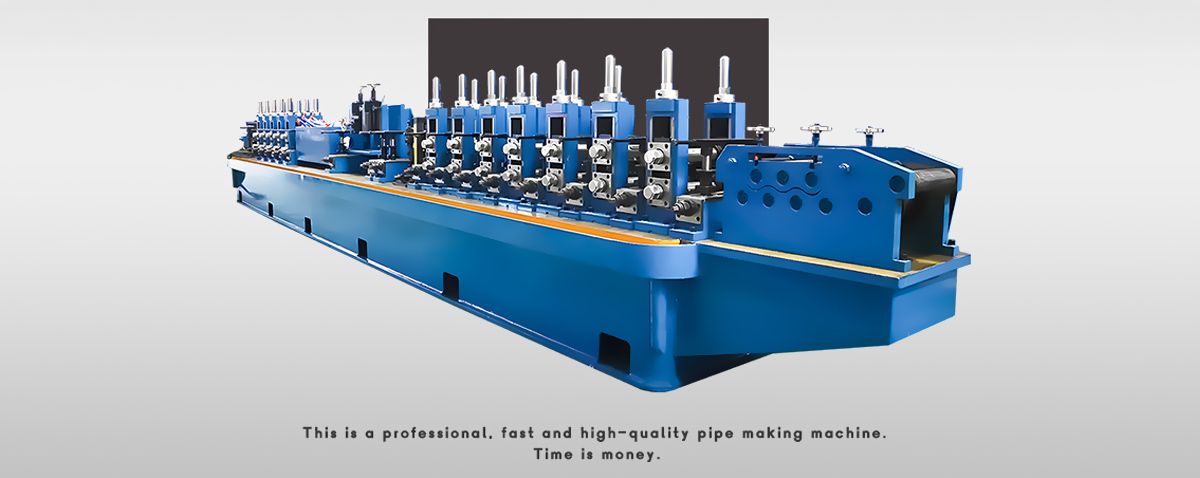

ERW 32 High Frequency Welding Pipe Production Line

High frequency pipe making machine is the special equipment to make steel strip form into pipe shape through rolling molds, then heated to melting temperature with the proximity effect and skin effect of high frequency, the two sides of the material weld together under the pressure of extrusion molds and finally become the required pipe size through cooling water, sizing molds and straightening molds. The whole tube mill includes equipment from raw material feeding until pipes are cut off and collected, production speed can change according to pipe size. Applicable material: hot or cold rolled carbon steel strip like Q195, Q235,16Mn,etc.

Product Features

01Fast production speed
02Stable Production
03production cost minimization
04Long service life-more than 20 years
05High precision
06Wide range of applications

Product parameters

ERW32 High Frequency Welding Pipe Production Line product parameters
Machine Model	HF32
Round Pipe Diameter	15mm-65mm
Square Pipe Diameter	20mm20mm-50.8mm50.8mm
Square Pipe Diameter	10mm30mm-40mm60mm
Round Pipe Thickness	0.5mm-2.5mm
Square Pipe Thickness	0.5mm-2.0mm
Production Speed	20-100m/min
Main Motor Power	132KW
High Frequency Power	150KW
Material	Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.

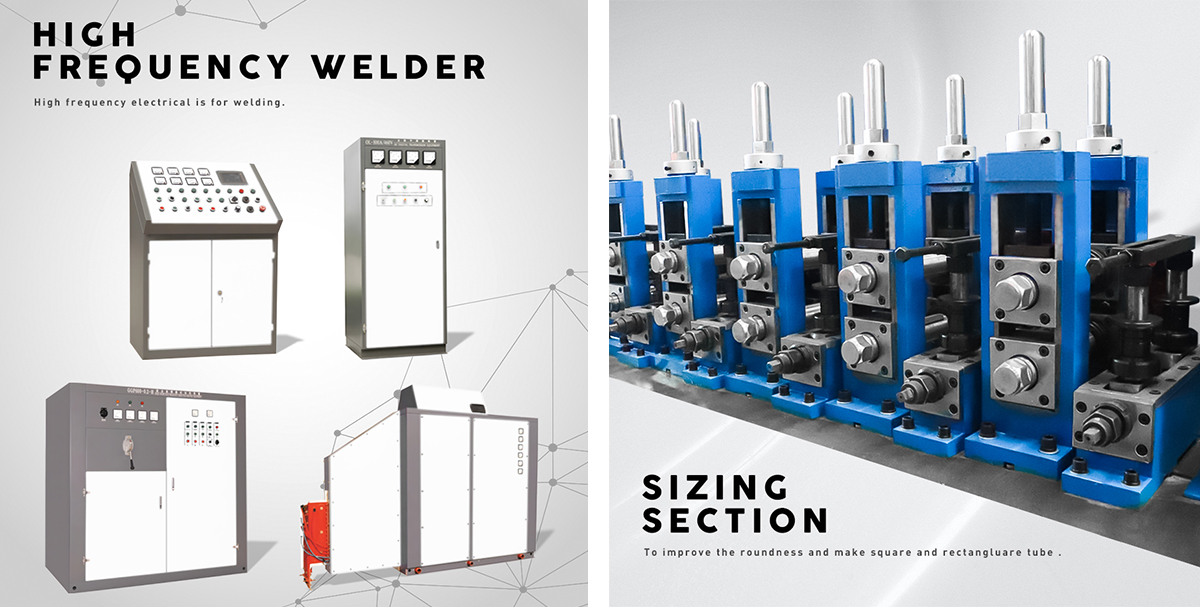

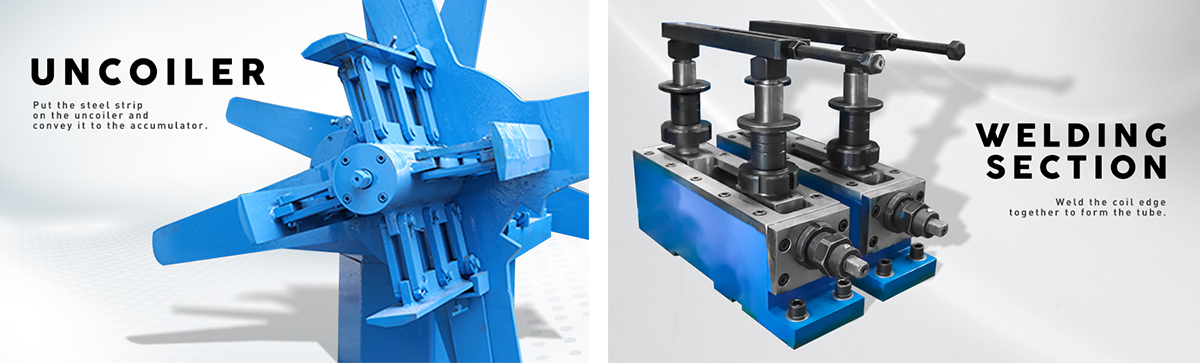

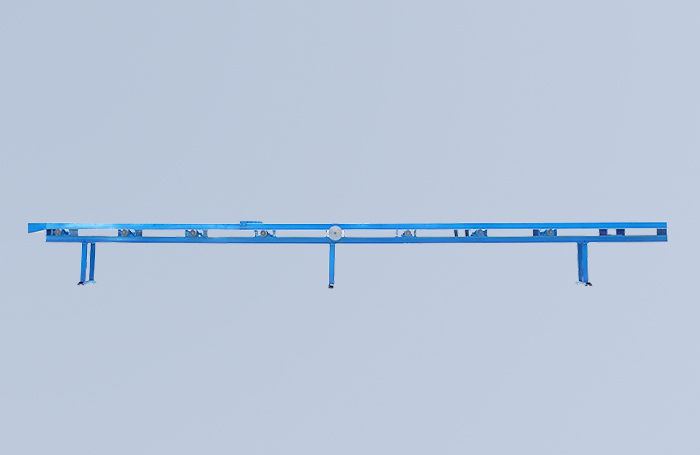

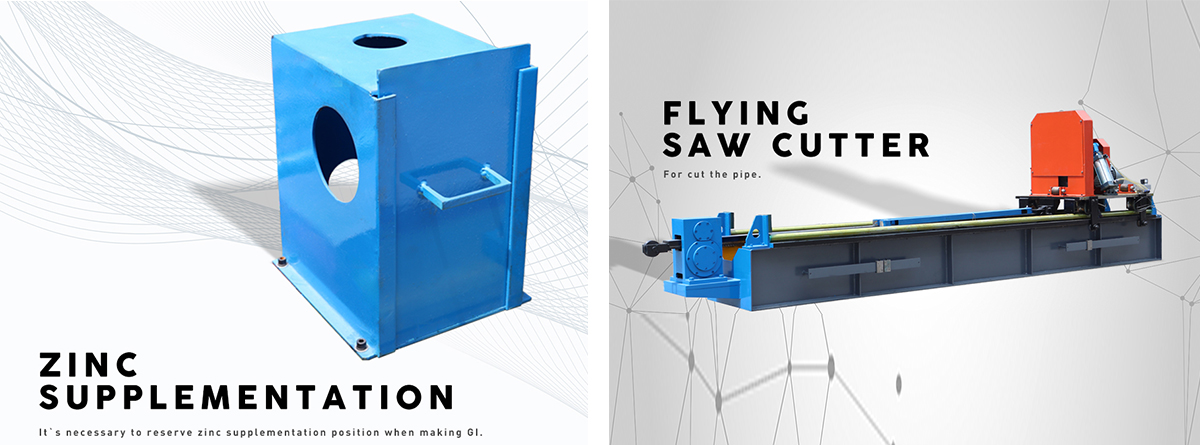

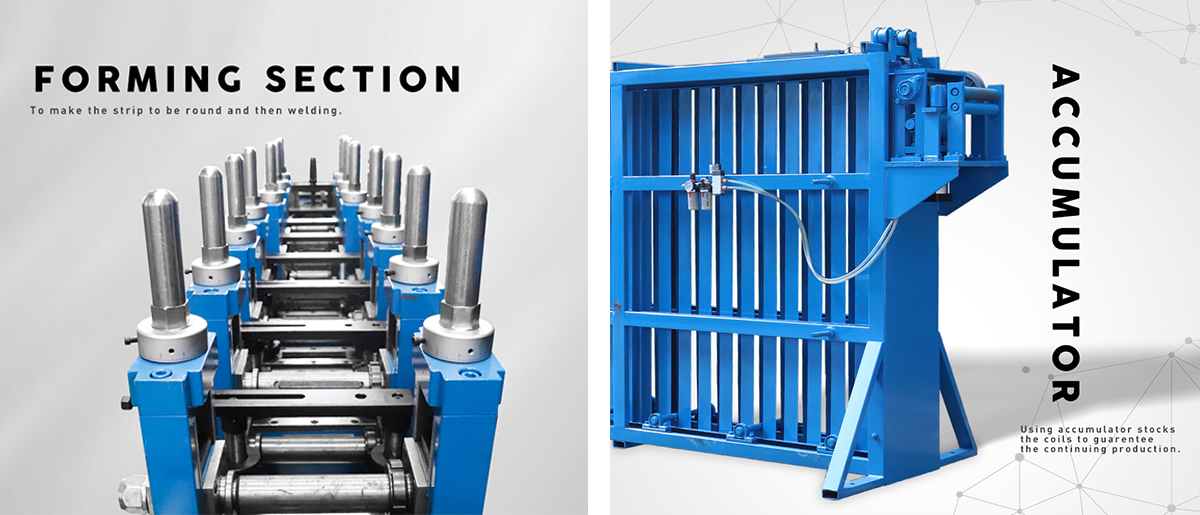

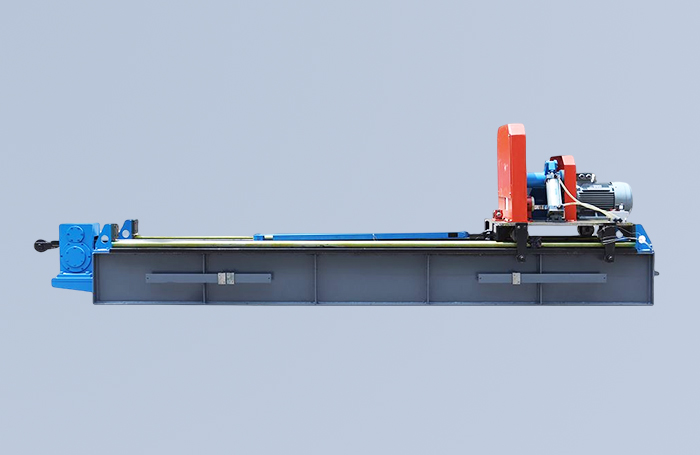

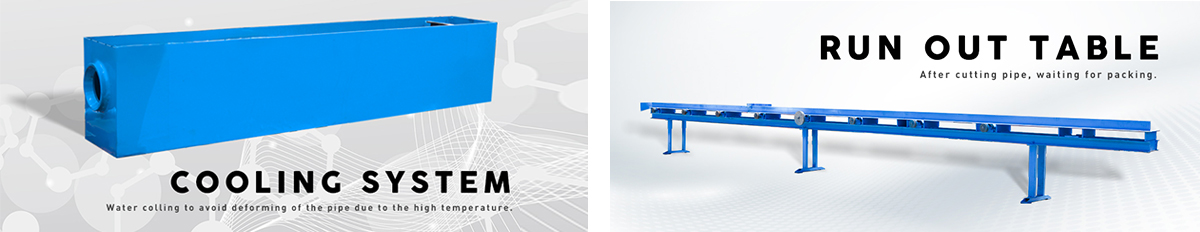

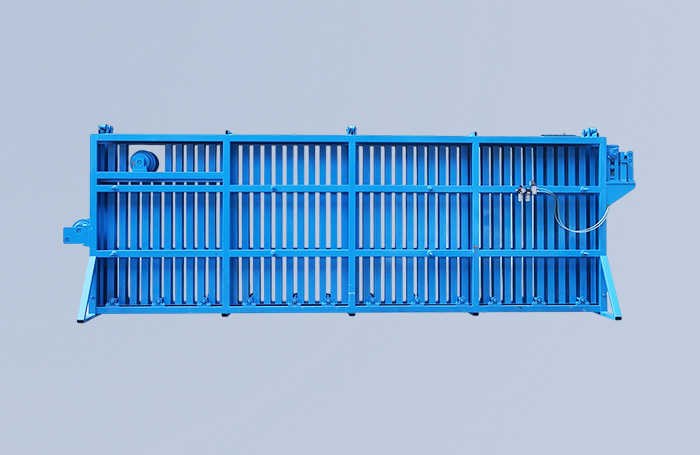

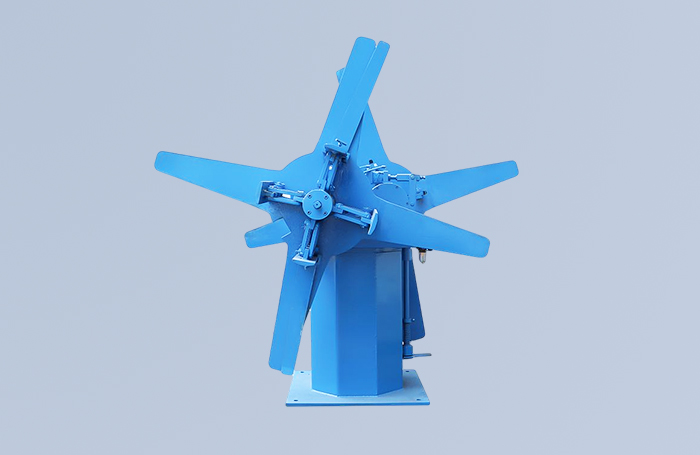

Machine Configuration	1.double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7.rolling molds 8.high frequency appliances

Product structure diagram

ERW32 High Frequency Welding Pipe Production Line

Structural Anatomy Diagram

ERW32 High Frequency Welding Pipe Production Line

Why Choose KingTech Tube Mill?

About KINGTECH Tube Mill

KINGTECH is a professional manufacturer specializing in ERW tube mills, laser tube mills, stainless steel tube mills, and complete steel pipe production lines. With more than 25 years of industry experience, we have supplied reliable tube making solutions to customers in over 100 countries.

KINGTECH Tube Mill Factory in China

KINGTECH Manufacturing Capabilities

Every machine is manufactured under strict quality control procedures. From precision machining and frame welding to assembly and factory testing, every production step is carefully inspected to ensure long-term stability and reliable performance.

Production Process: Raw Material → CNC Machining → Welding → Assembly → Machine Testing → Packaging → Delivery.

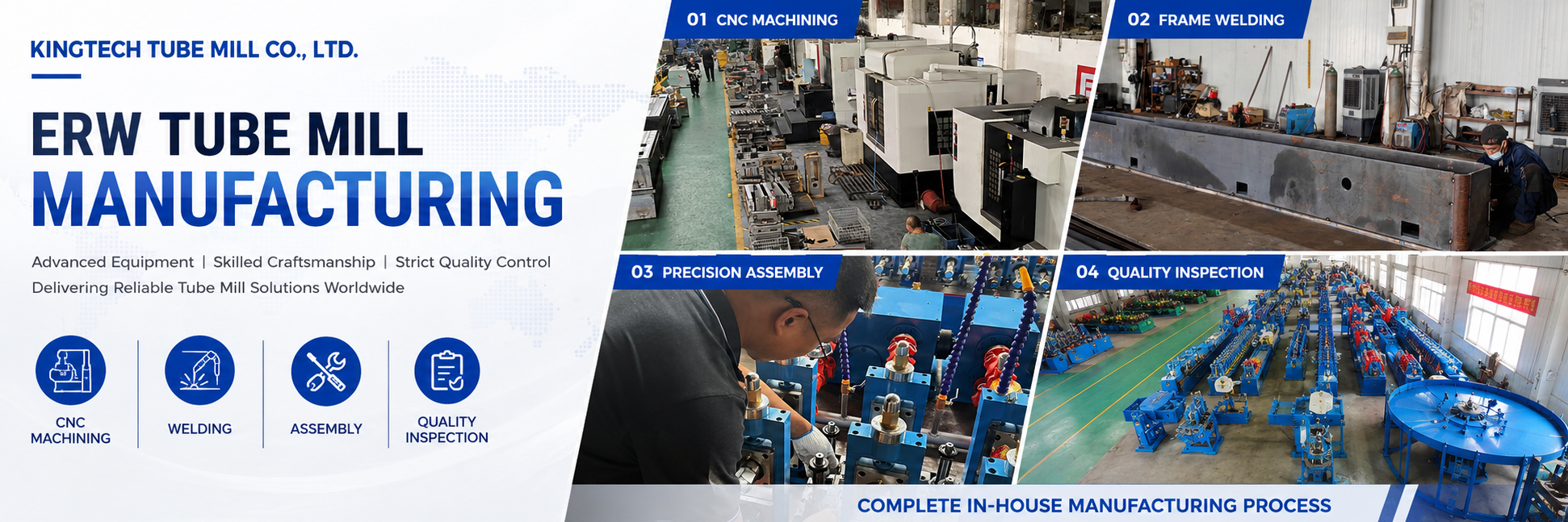

ERW Tube Mill Manufacturing

Trusted by Customers Worldwide

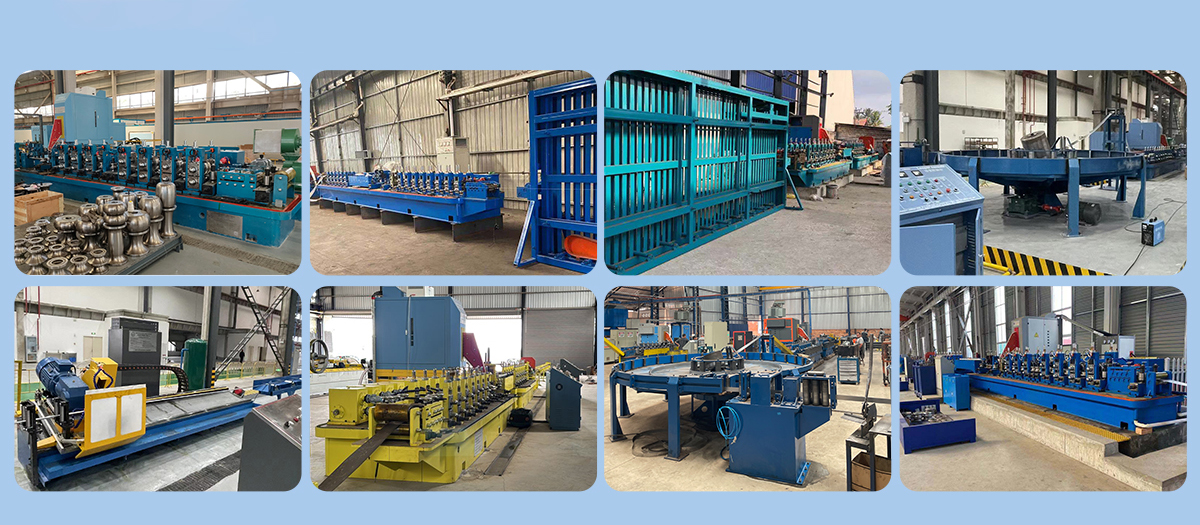

Our tube mill machines are operating successfully in more than 100 countries and regions, serving manufacturers in construction, furniture, automotive, water supply, and industrial applications.
