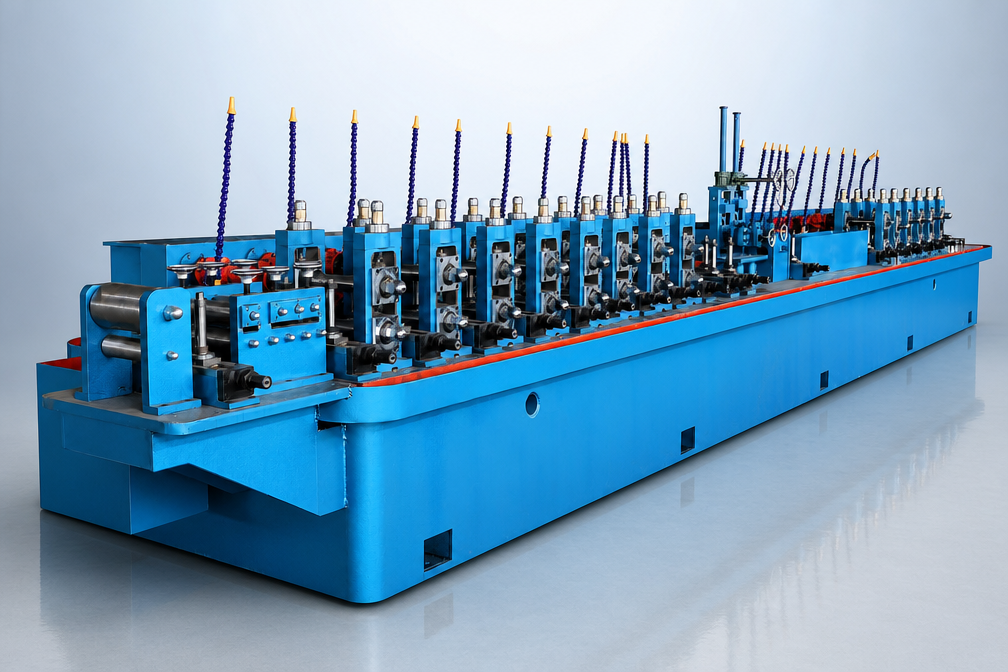

High Frequency Tube Making Machine for Furniture Tube

HF28 High Frequency Tube Mill for furniture tube production, producing 12.7–50.8 mm round tubes and 10×10–40×40 mm square tubes at speeds up to 100 m/min. Designed for efficient thin-wall steel tube production with consistent dimensions and stable HF welding.

Furniture Tube Making Machine Product Features

01PRODUCTION RANGE
02PIPE APPLICATIONS
03PIPE MATERIALS

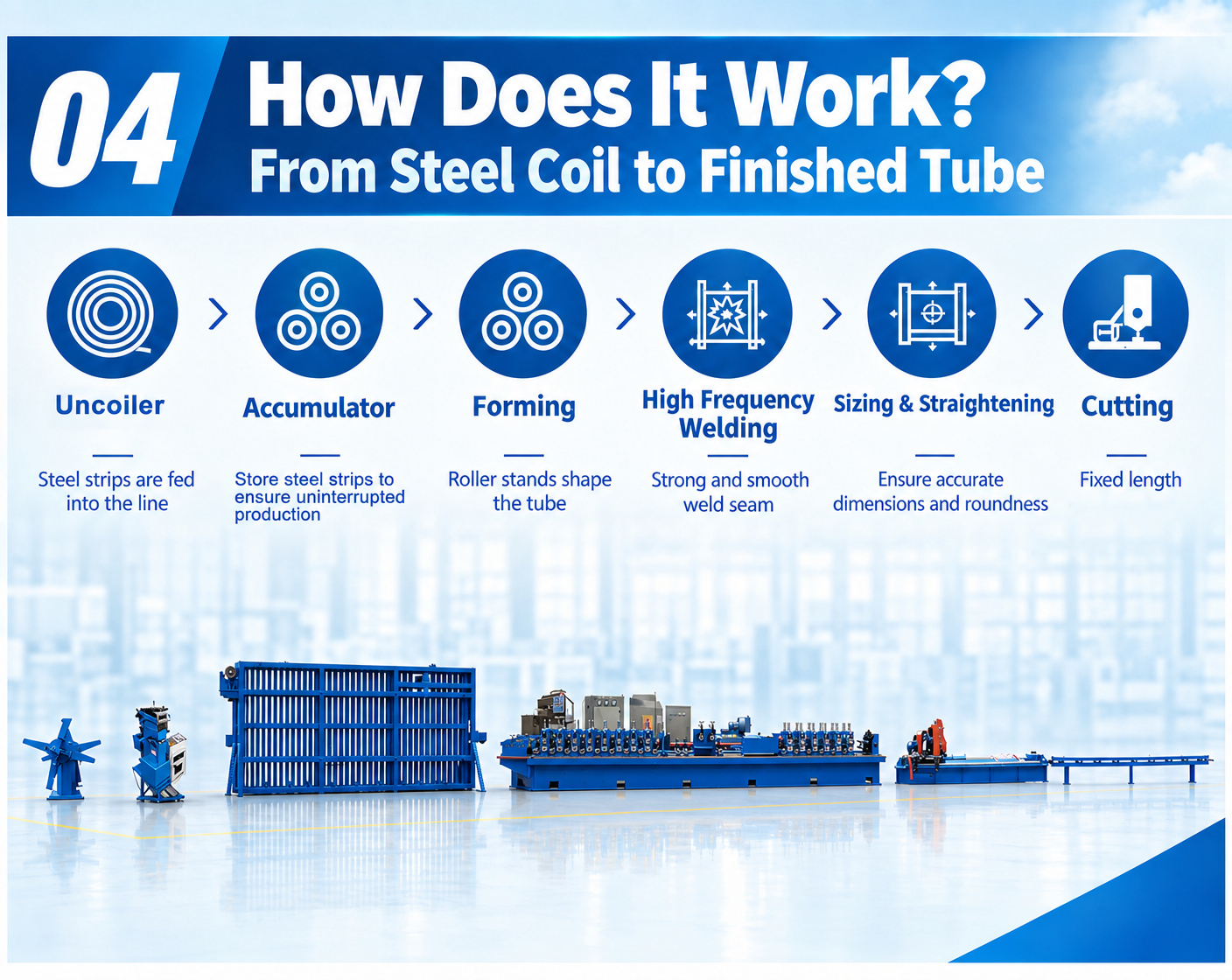

04TUBE MILL PRODUCTION PROCESS
05FEATURES AND ADVANTAGES
06COMPLETE TUBE MILL SOLUTION

Furniture Tube Making Machine Product parameters

Furniture Tube Making Machine Product Parameters
Machine Model	HF28
Round Pipe Diameter	12.7mm-50.8mm
Square Pipe Diameter	10mm10mm-40mm40mm
Square Pipe Diameter	10mm10mm-20mm60mm
Round Pipe Thickness	0.3mm-1.8mm
Square Pipe Thickness	0.3mm-1.5mm
Production Speed	20-100m/min
Main Motor Power	900KW
High Frequency Power	100KW
Material	Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.
Machine Configuration	1.double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7.rolling molds 8.high frequency appliances

Furniture Tube Making Machine Product structure diagram

scaffolding Tube Mill Production Line

erw tube mill -CAD

Complete Furniture Tube Making Machine Production Process:

Raw Material (Steel Strip Coil) → Coil Uncoiler → Strip Cutting & Butt Welding → Accumulator → Strip Feeding & Forming → High-Frequency Welding → External Weld Bead Removal → Cooling Water Tank → Sizing & Straightening → Flying Saw Cutting → Run-Out Table → Manual Stacking & Bundling → Inspection → Warehousing

Complete ERW Tube Mill Production Process

Furniture Tube Making Machine Structural Anatomy Diagram

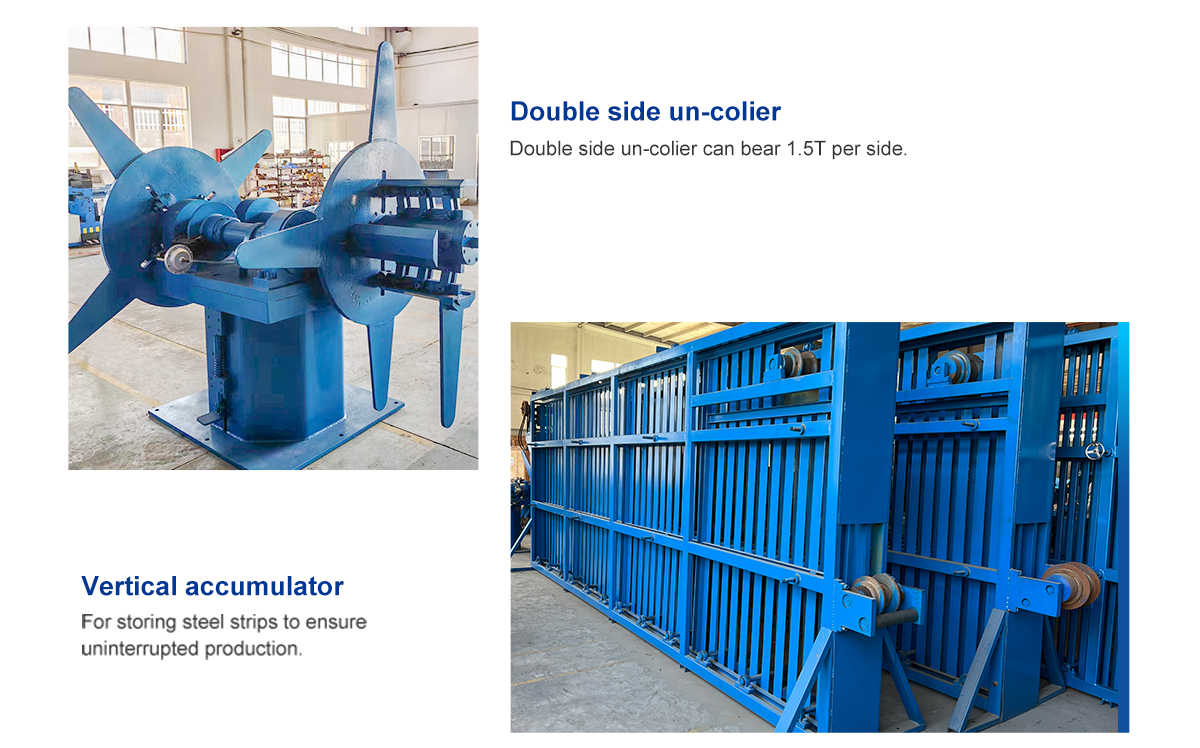

Furniture Tube Mill

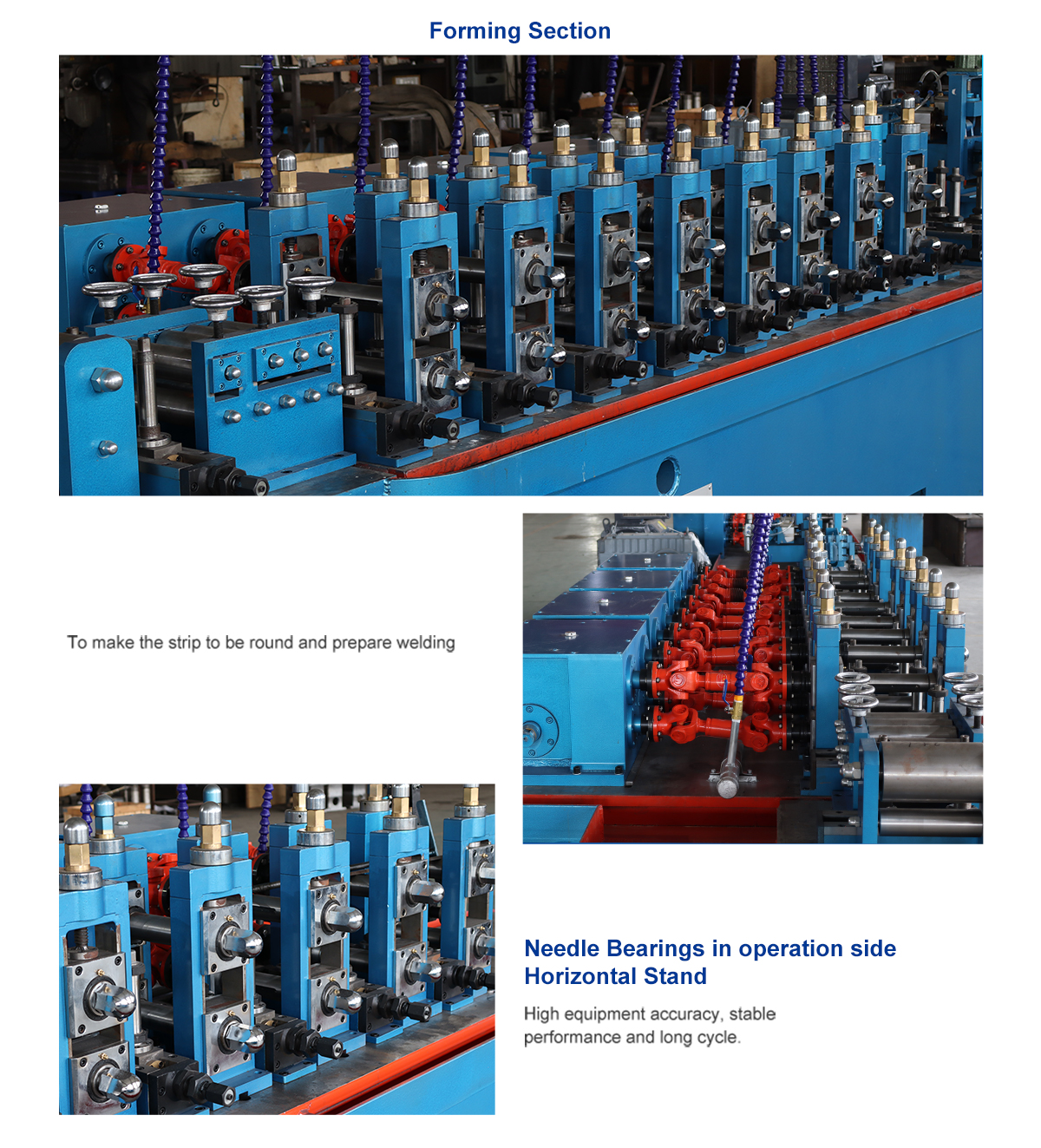

Furniture Tube Forming Mill

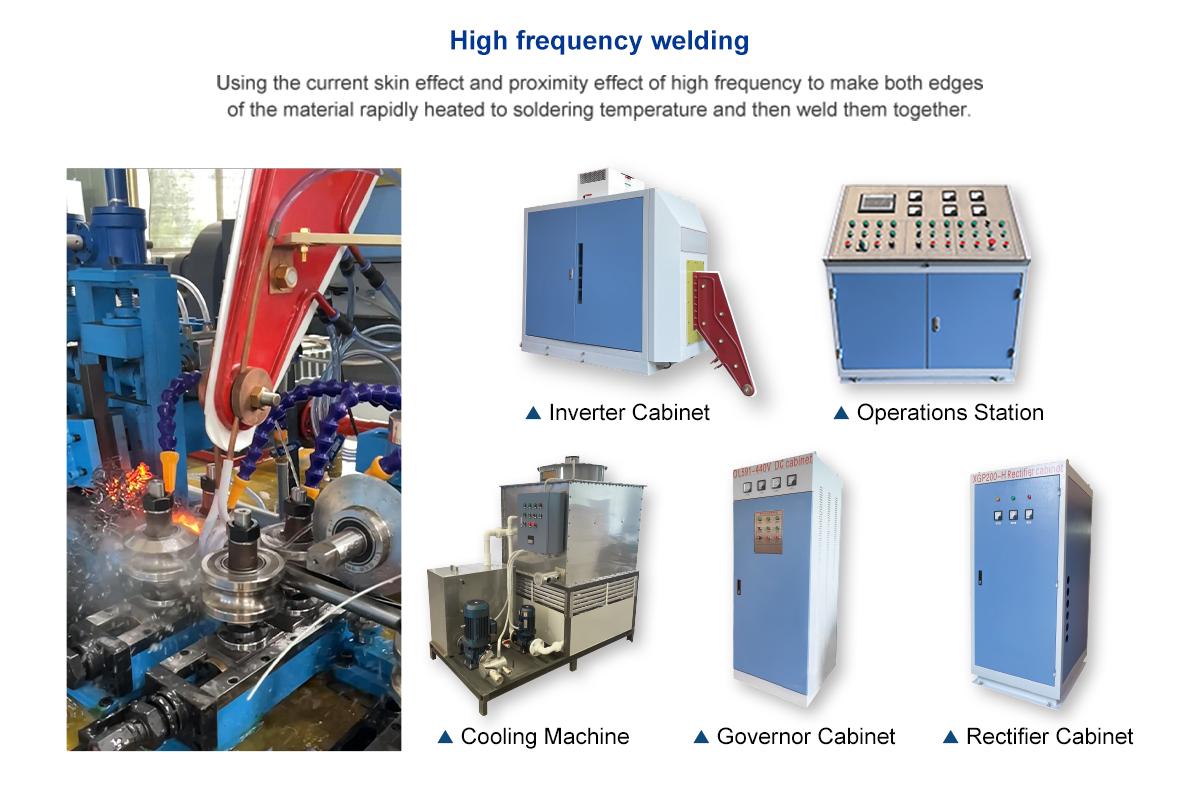

High Frequency Welding Machine

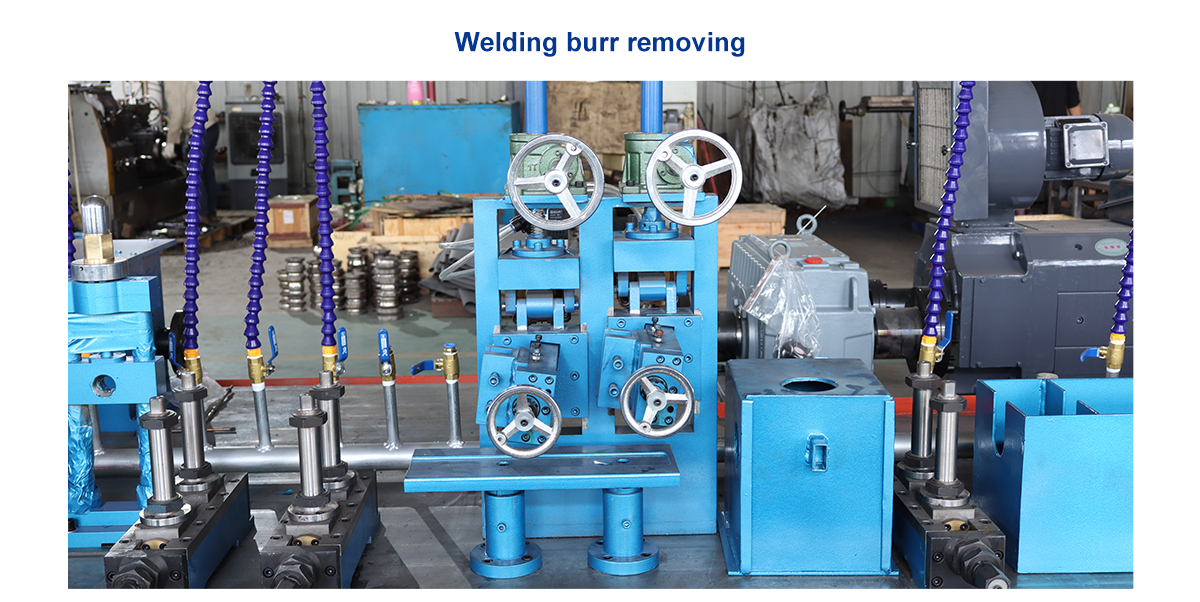

Furniture Tube Mill Welding Burr Removing

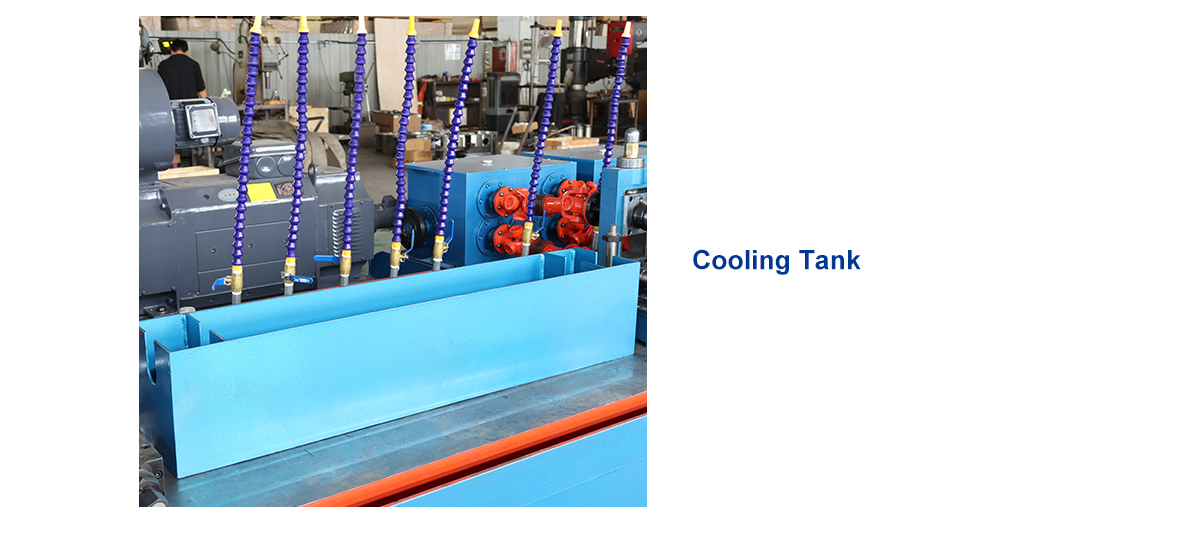

Furniture Tube Mill Cooling Tank

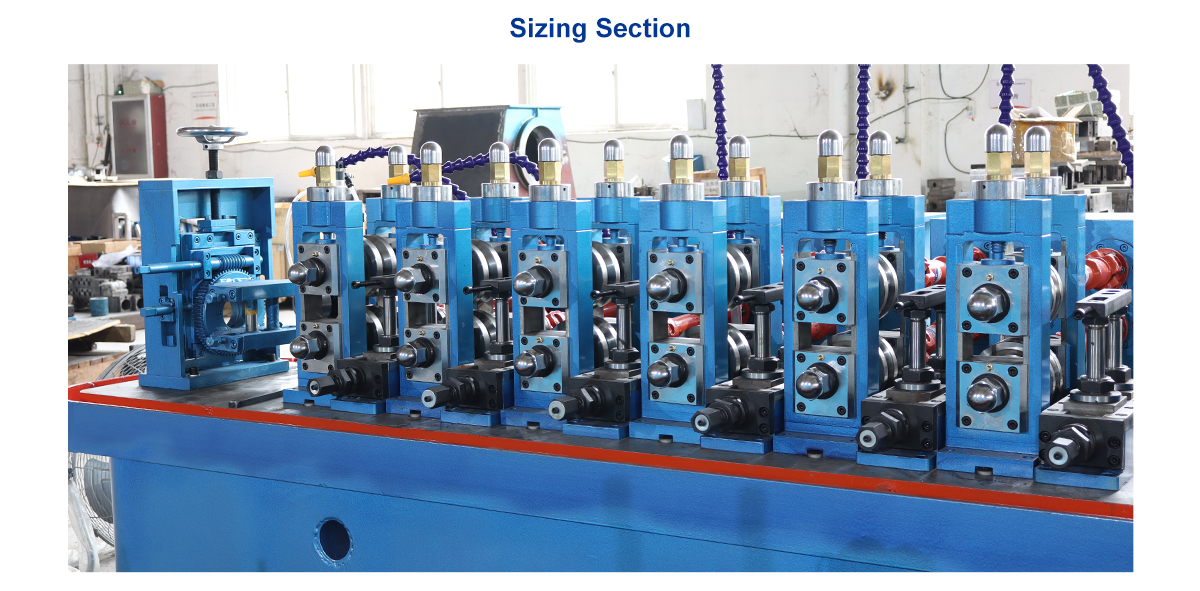

Furniture Tube Mill Sizing Section

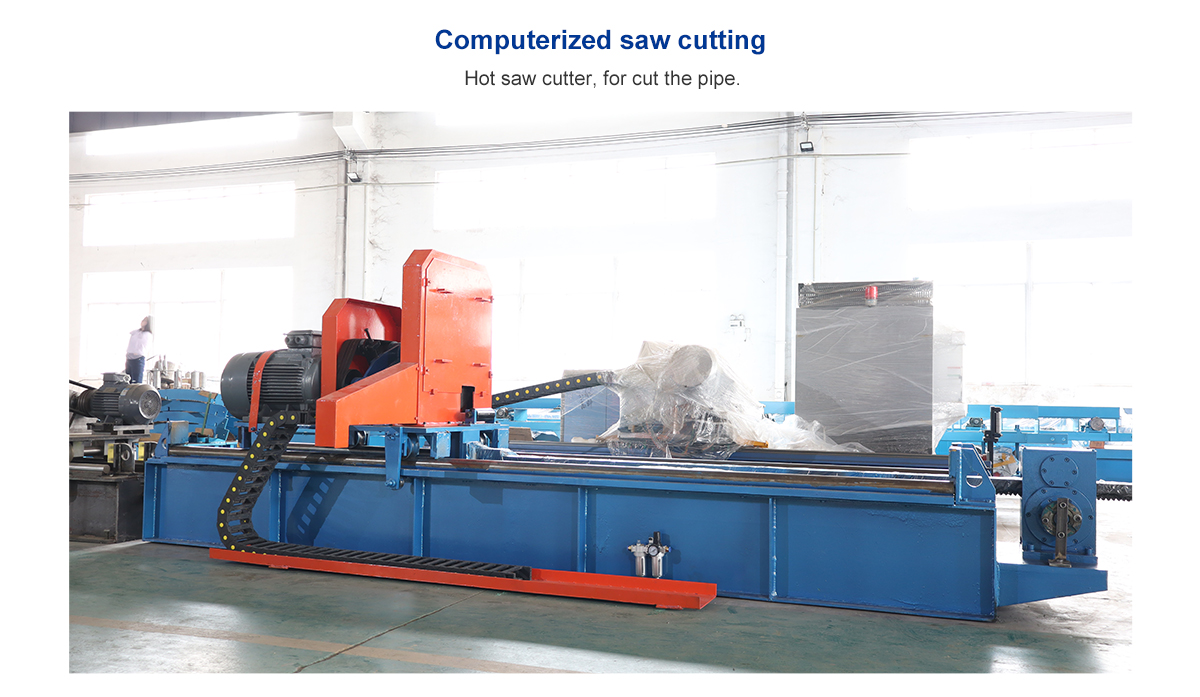

Hot Saw Cutter

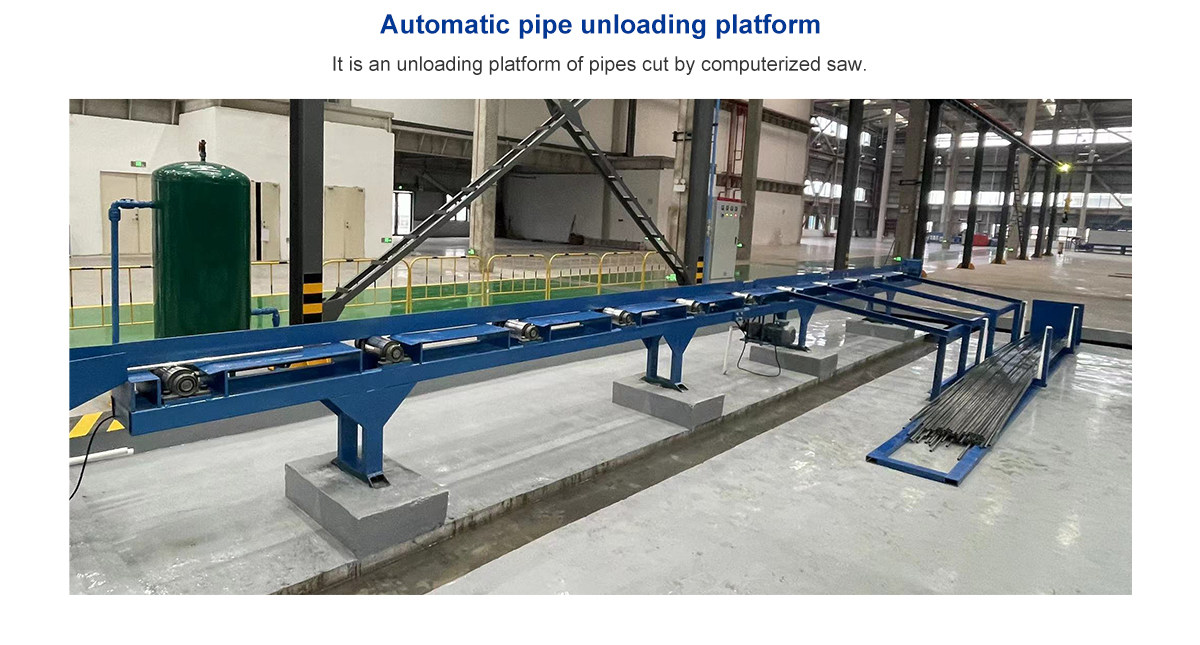

Furniture Tube Mill Run-out Table

Furniture Tube Making Machine Applications

HF28 Tube Making Machine is designed for efficient production of round and square furniture tubes,with the round tube range of 12.7–50.8 mm and square tube sizes from 10×10 to 40×40 mm. It suitable for producing steel furniture tubes, chair and table frame tubes, shelving tubes and other welded tubular components.
