| Construction Pipe Mill Production Line Product Parameters | |
| Machine Model | HF60K102 |
| Round Pipe Diameter | 38.1mm-103mm |
| Square Pipe Diameter | 28mm*28mm-80mm*80mm |
| 10mm*30mm-60mm*100mm | |
| Round Pipe Thickness | 0.8mm-3.0mm |
| Square Pipe Thickness | 0.8mm-2.5mm |
| Production Speed | 20-80m/min |
| Main Motor Power | 185KW |
| High Frequency Power | 250KW |
| Material | Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil. |

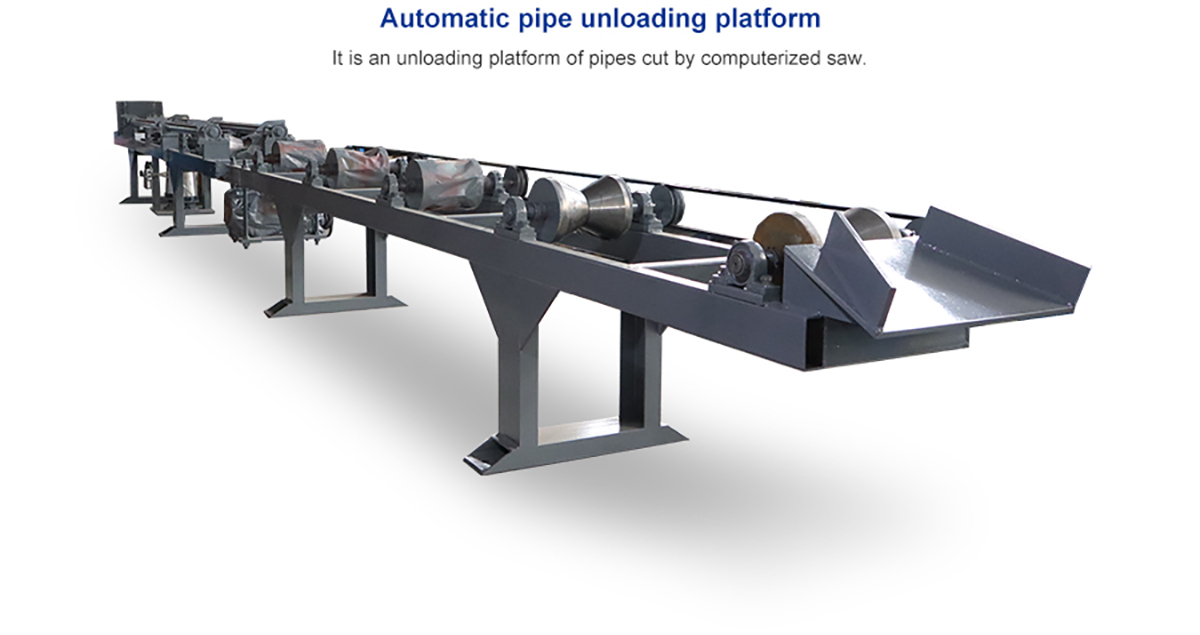

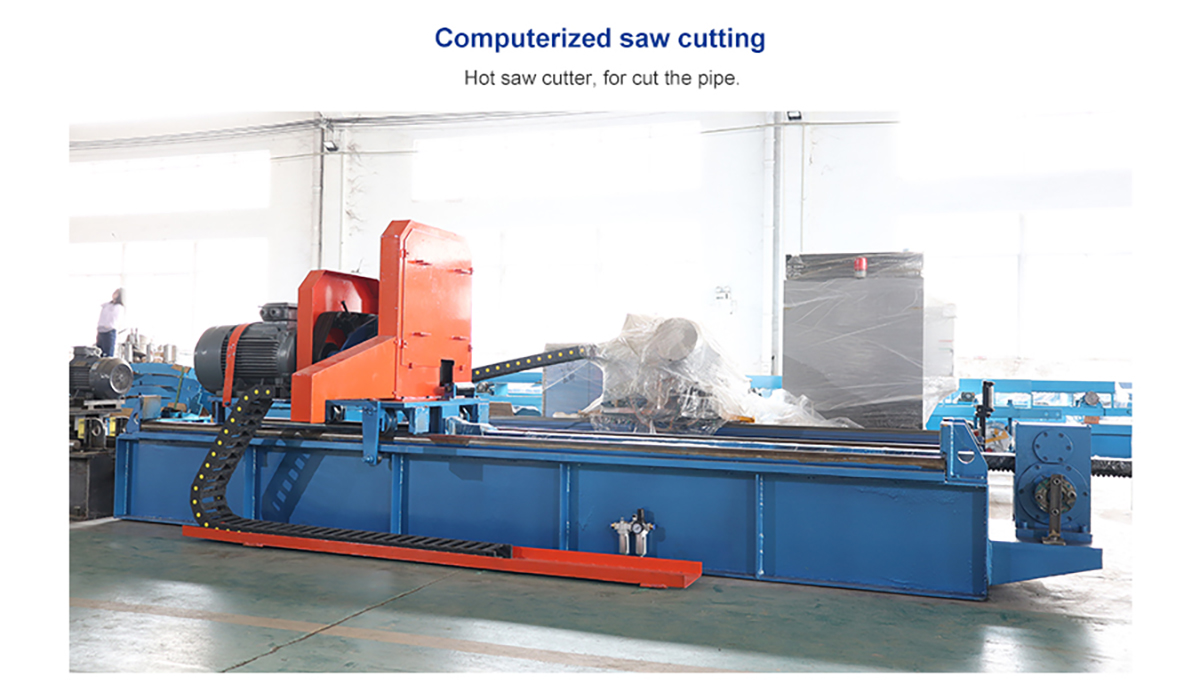

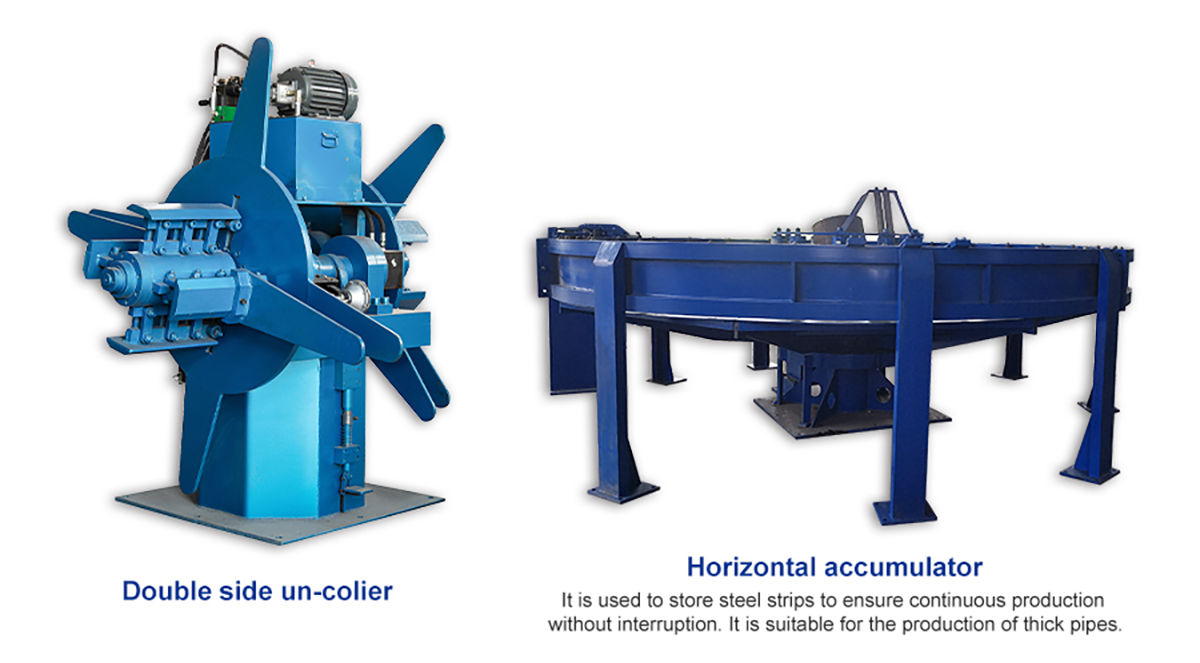

| Machine Configuration | 1.double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7.rolling molds 8.high frequency appliances |
Complete Construction Pipe Mill Machine Production Process:

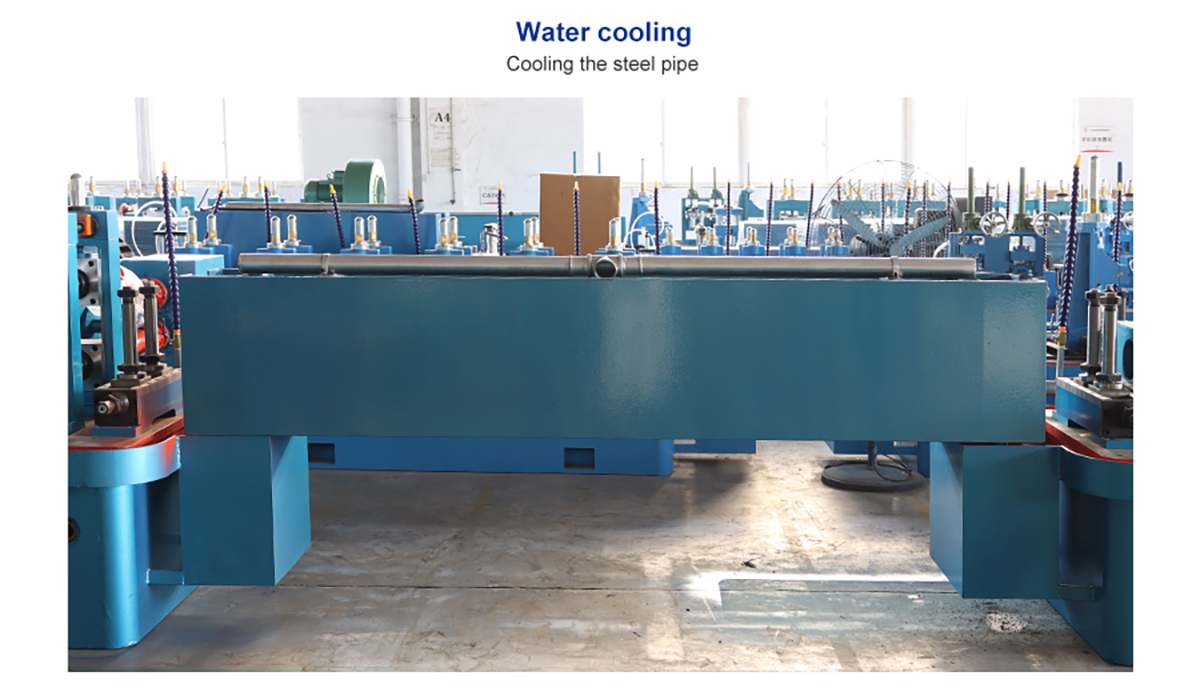

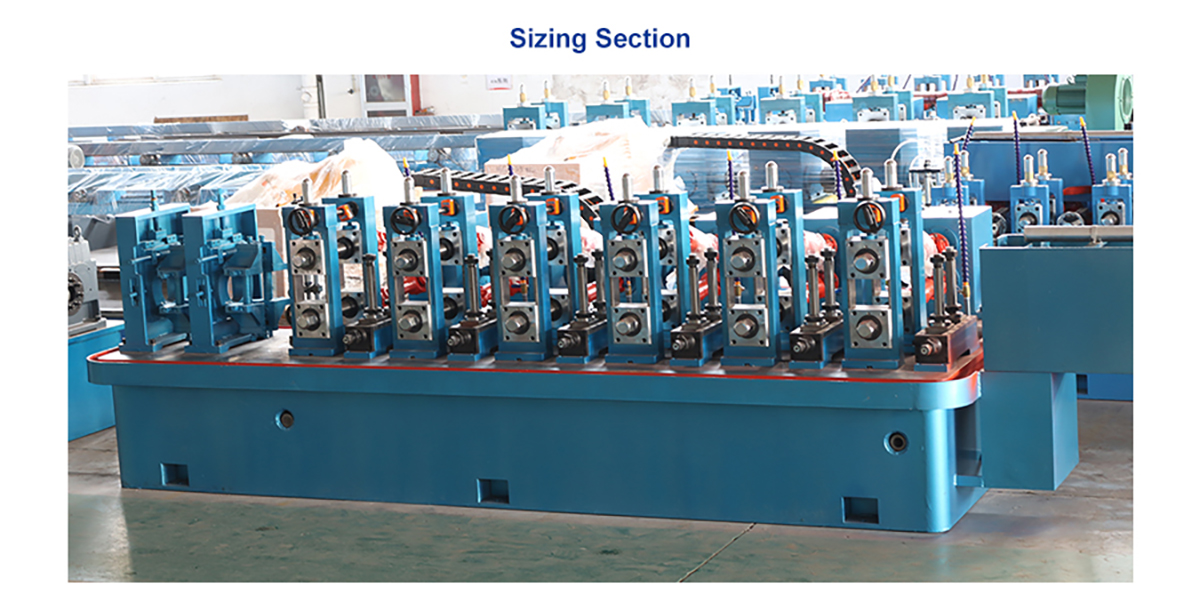

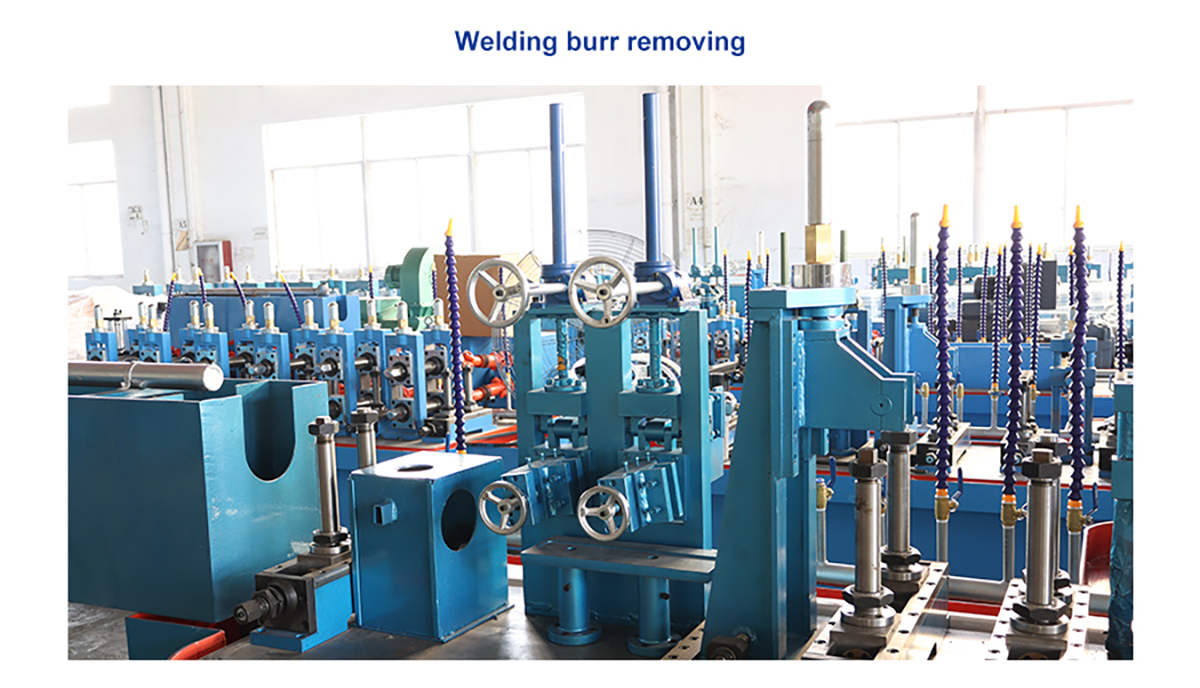

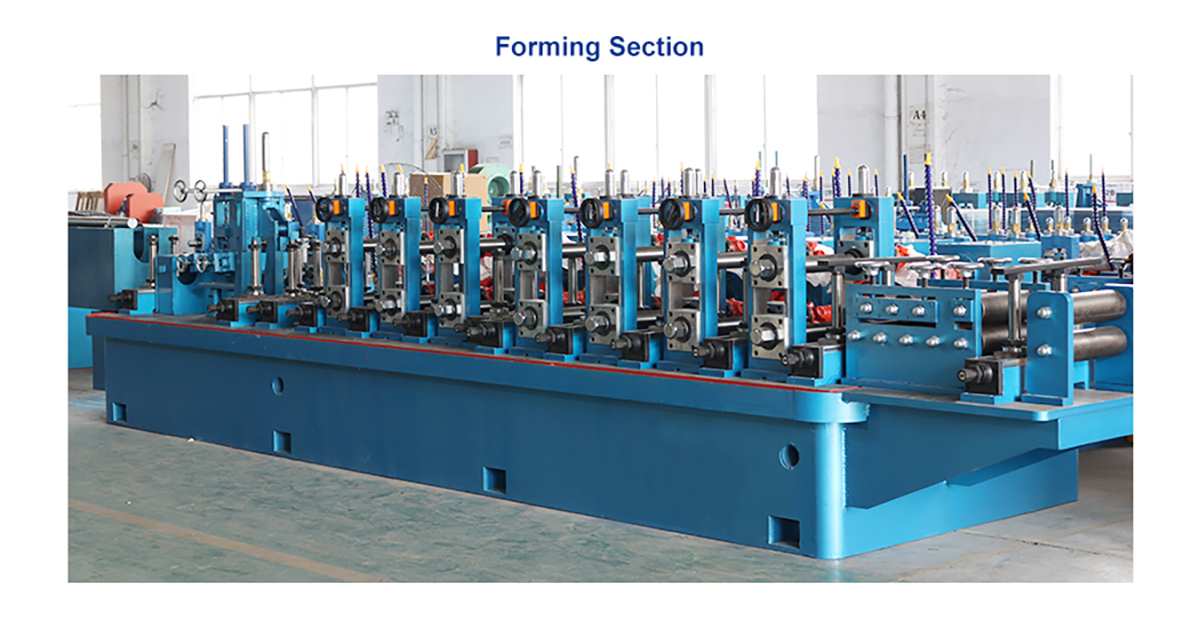

Raw Material (Steel Strip Coil) → Coil Uncoiler → Strip Cutting & Butt Welding → Accumulator → Strip Feeding & Forming → High-Frequency Welding → External Weld Bead Removal → Cooling Water Tank → Sizing & Straightening → Flying Saw Cutting → Run-Out Table → Manual Stacking & Bundling → Inspection → Warehousing

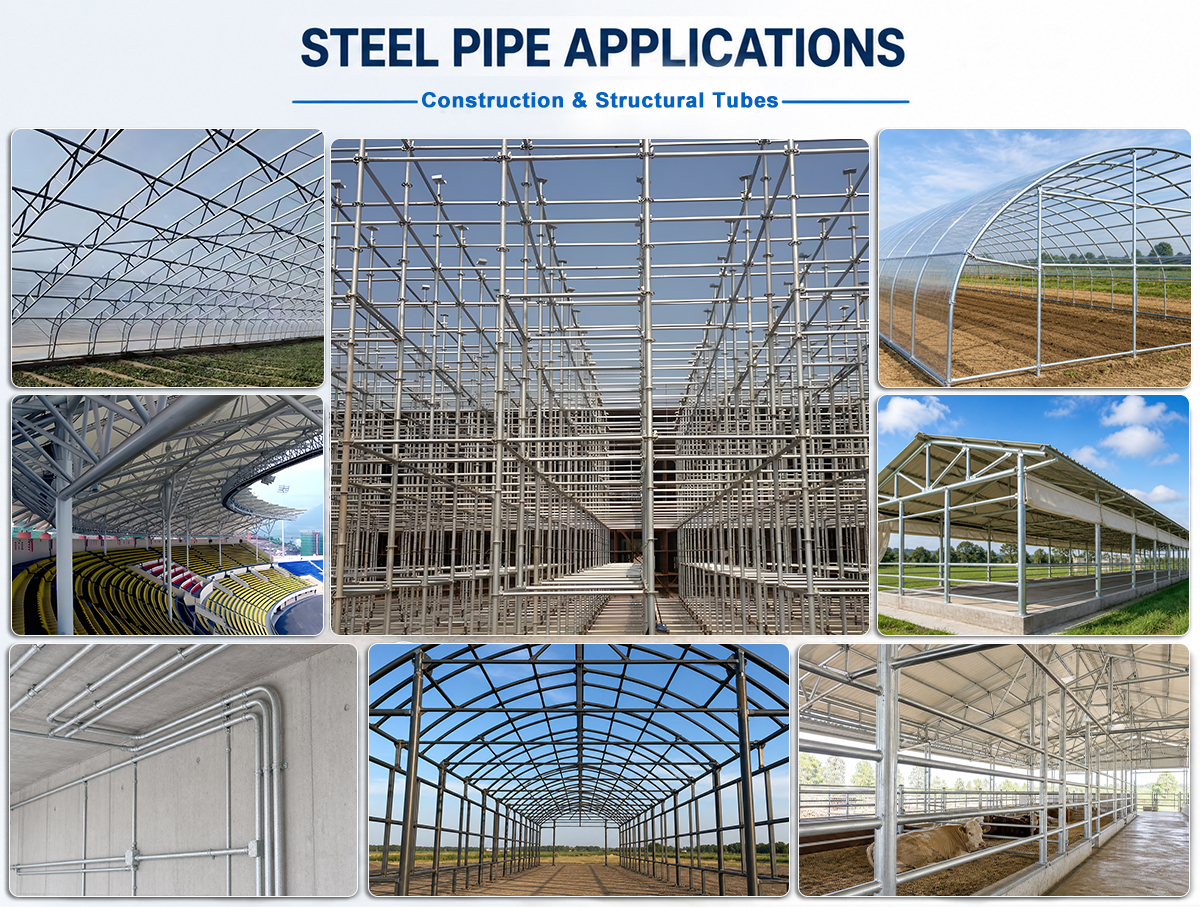

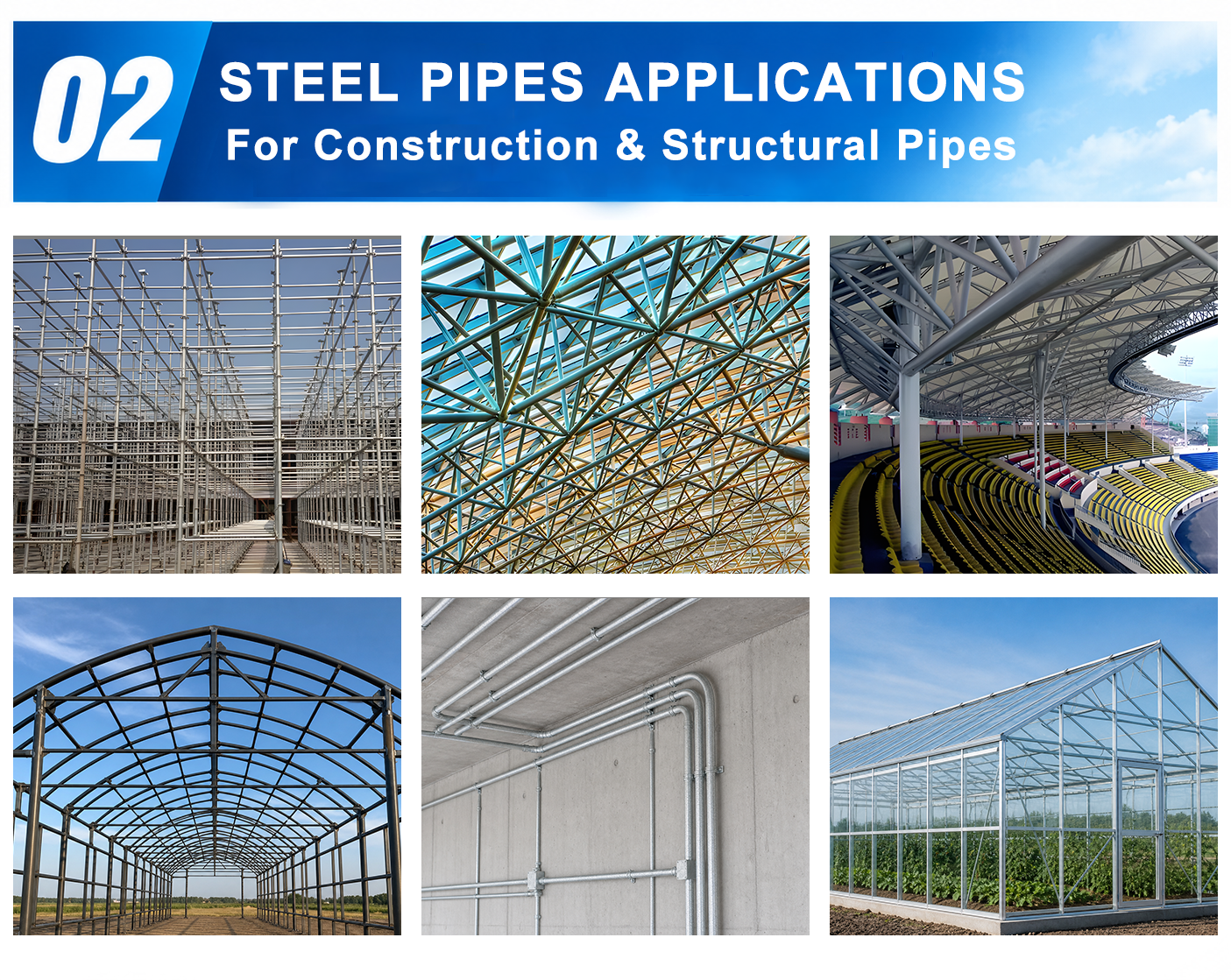

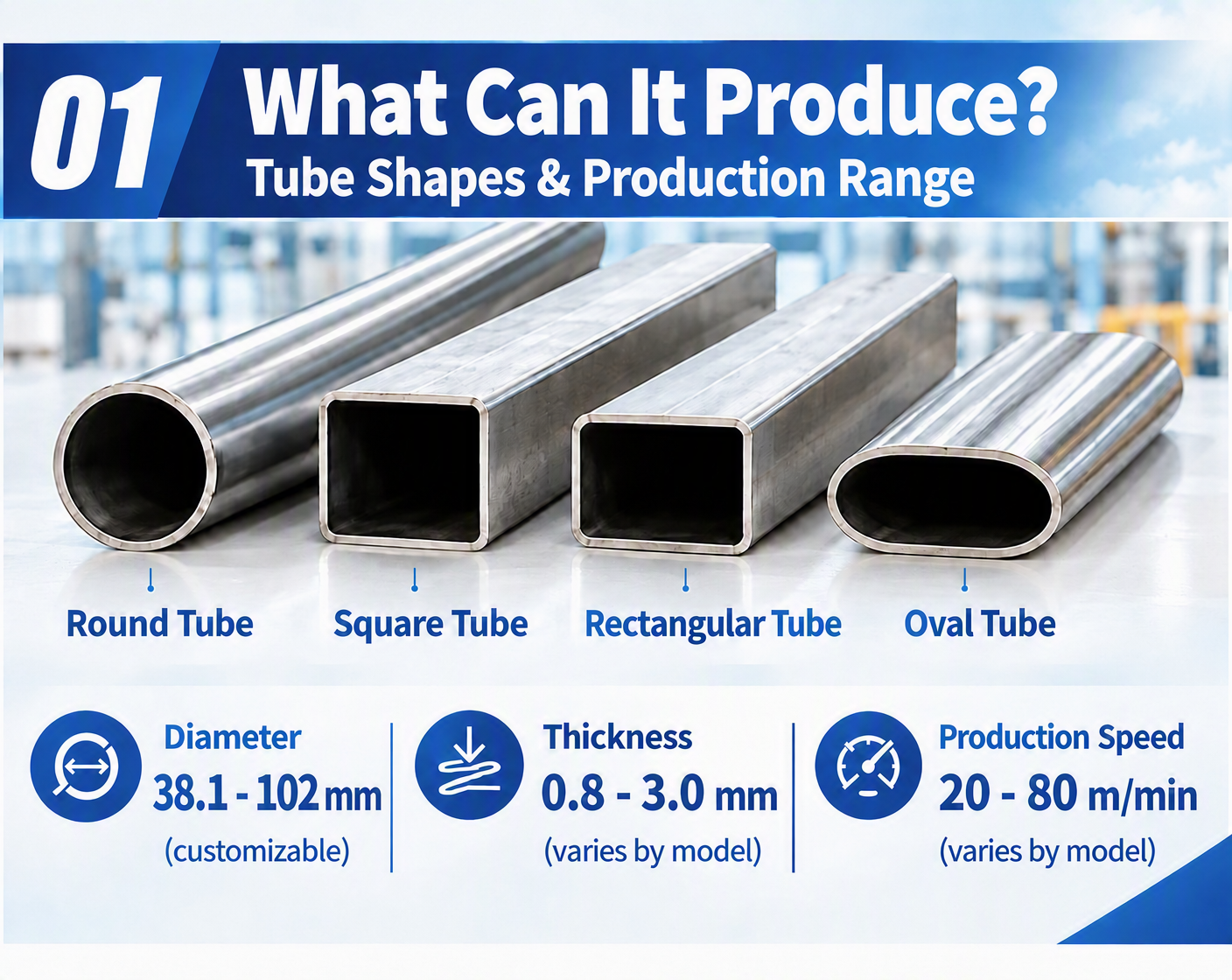

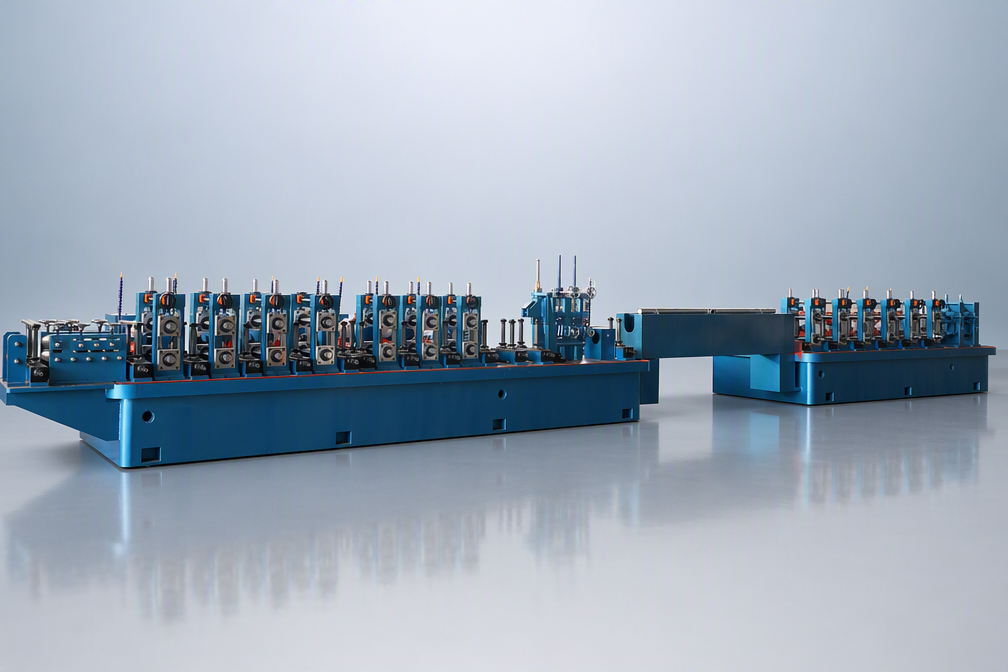

he HF60K102 High Frequency Tube Mill is designed for efficient production of round welded steel tubes from 38.1 to 102 mm in diameter, with wall thicknesses from 0.8 to 3.0 mm and production speeds of 20–80 m/min. This pipe machine is designed for efficient production of steel pipes used in construction steel tubes, structural steel tubes, building frame tubes, support tubes, column tubes and other temporary structural systems.
About KINGTECH Tube Mill
KINGTECH is a professional manufacturer specializing in ERW tube mills, laser tube mills, stainless steel tube mills, and complete steel pipe production lines. With more than 25 years of industry experience, we have supplied reliable tube making solutions to customers in over 100 countries.
KINGTECH Manufacturing Capabilities
Every machine is manufactured under strict quality control procedures. From precision machining and frame welding to assembly and factory testing, every production step is carefully inspected to ensure long-term stability and reliable performance.
Production Process: Raw Material → CNC Machining → Welding → Assembly → Machine Testing → Packaging → Delivery.
Trusted by Customers Worldwide
Our tube mill machines are operating successfully in more than 100 countries and regions, serving manufacturers in construction, furniture, automotive, water supply, and industrial applications.
From Southeast Asia and the Middle East to South America, Africa, and Europe, customers trust KINGTECH for reliable equipment, stable performance, and professional technical support.
Professional Installation & Technical Support
Our experienced engineers provide complete installation, commissioning, operator training, and production guidance.
Whether your factory is located in Asia, South America, Africa, Europe, or the Middle East, our technical team can help you quickly start production and maximize equipment performance.
Secure Packaging & Worldwide Delivery
Every machine is carefully protected before shipment using anti-rust treatment, moisture-proof packaging, and reinforced loading methods. Our experienced logistics team ensures safe transportation by container or truck, helping equipment arrive at customers' factories in excellent condition.
Customer Testimonials
Customers choose KINGTECH not only for reliable machines but also for professional service. Many customers appreciate our fast technical response, customized engineering solutions, stable machine performance, and long-term after-sales support. Their successful projects continue to strengthen our reputation worldwide.
Looking for a reliable high frequency pipe mill for construction and structural steel tube production?
KingTech can provide a complete HF60K102 pipe mill solution according to your required tube diameter, wall thickness, steel material, production speed and automation requirements.
Request a Quote | Contact KingTech| Contact KingTech
KINGTECH Providing customers with professional factory planning solutions and turnkey project.
