High Frequency ERW Pipe Making Machine for Fluid And Gas Transmission

The HF89 High Frequency ERW Pipe Making Machine is designed for continuous production of round welded steel pipes used for fluid and gas transmission applications. The machine produces round pipes from 48 to 114 mm in diameter, with wall thicknesses from 1.2 to 4.0 mm and production speeds of 20–70 m/min.

ERW Pipe Making Machine Product Features

01PRODUCTION RANGE
02PIPE APPLICATIONS
03PIPE MATERIALS
04TUBE MILL PRODUCTION PROCESS
05FEATURES AND ADVANTAGES
06COMPLETE TUBE MILL SOLUTION

ERW Pipe Making Machine Product parameters

ERW Tube Production Line Product Parameters
Machine Model	HF89
Round Pipe Diameter	48mm-114mm
Square Pipe Diameter	40mm40mm-90mm90mm
Square Pipe Diameter	30mm50mm-60mm100mm
Round Pipe Thickness	1.2mm-4.0mm
Square Pipe Thickness	1.2mm-3.5mm
Production Speed	20-70m/min
Main Motor Power	160KW*2
High Frequency Power	300KW
Material	Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.
Machine Configuration	1.double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7.rolling molds 8.high frequency appliances

ERW Pipe Making Machine Product structure diagram

ERW pipe mill for fluid and gas transmission

Complete ERW Pipe Mill Line Production Process:

Raw Material (Steel Strip Coil) → Coil Uncoiler → Strip Cutting & Butt Welding → Accumulator → Strip Feeding & Forming → High-Frequency Welding → External Weld Bead Removal → Cooling Water Tank → Sizing & Straightening → Flying Saw Cutting → Run-Out Table → Manual Stacking & Bundling → Inspection → Warehousing

high frequency ERW pipe making machine

ERW Pipe Making Machine Structural Anatomy Diagram

erw pipe making machine

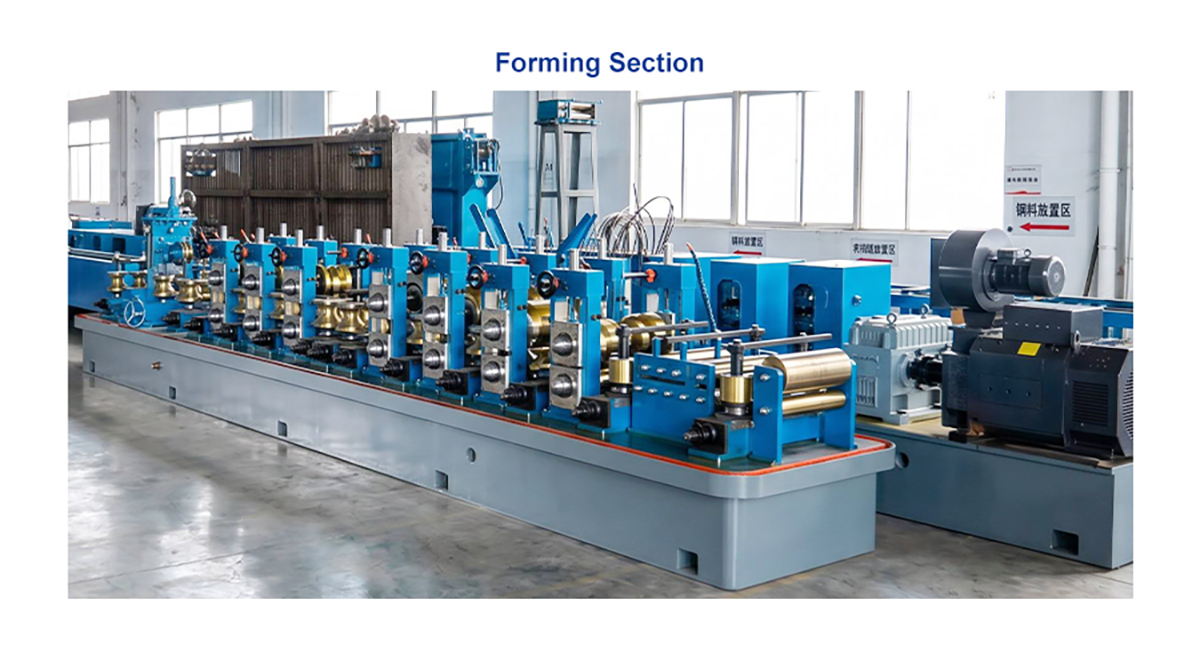

ERW pipe forming machine

High Frequency Welding Machine

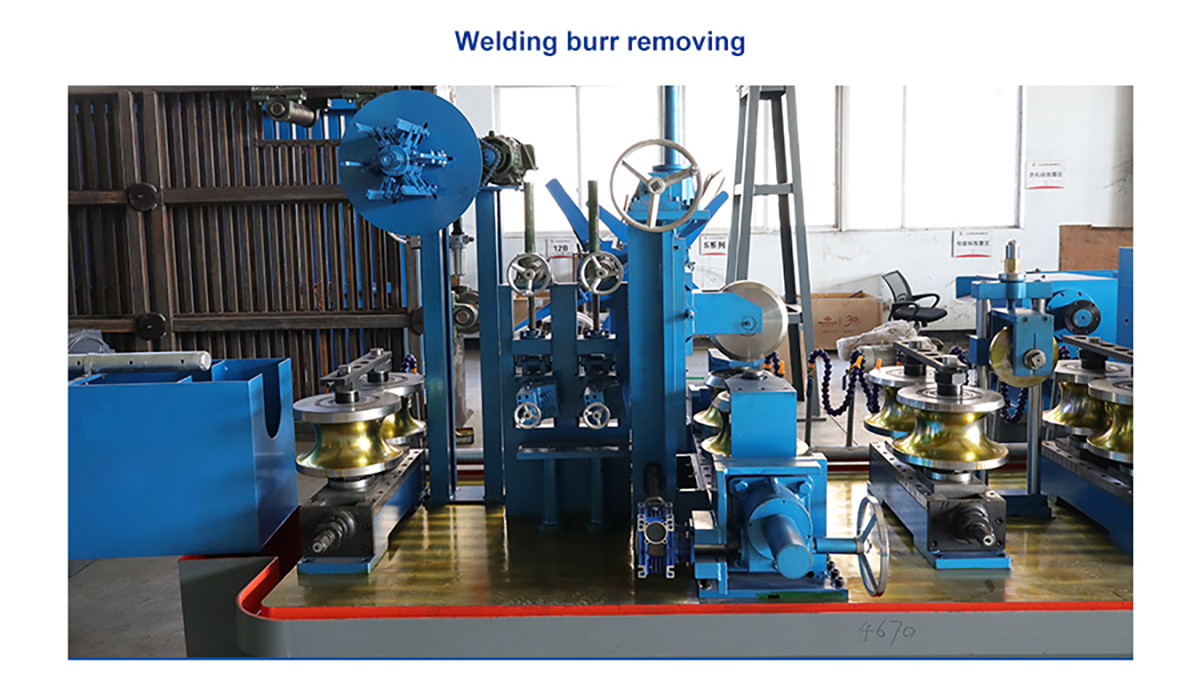

ERW pipe making machine welding burr removing

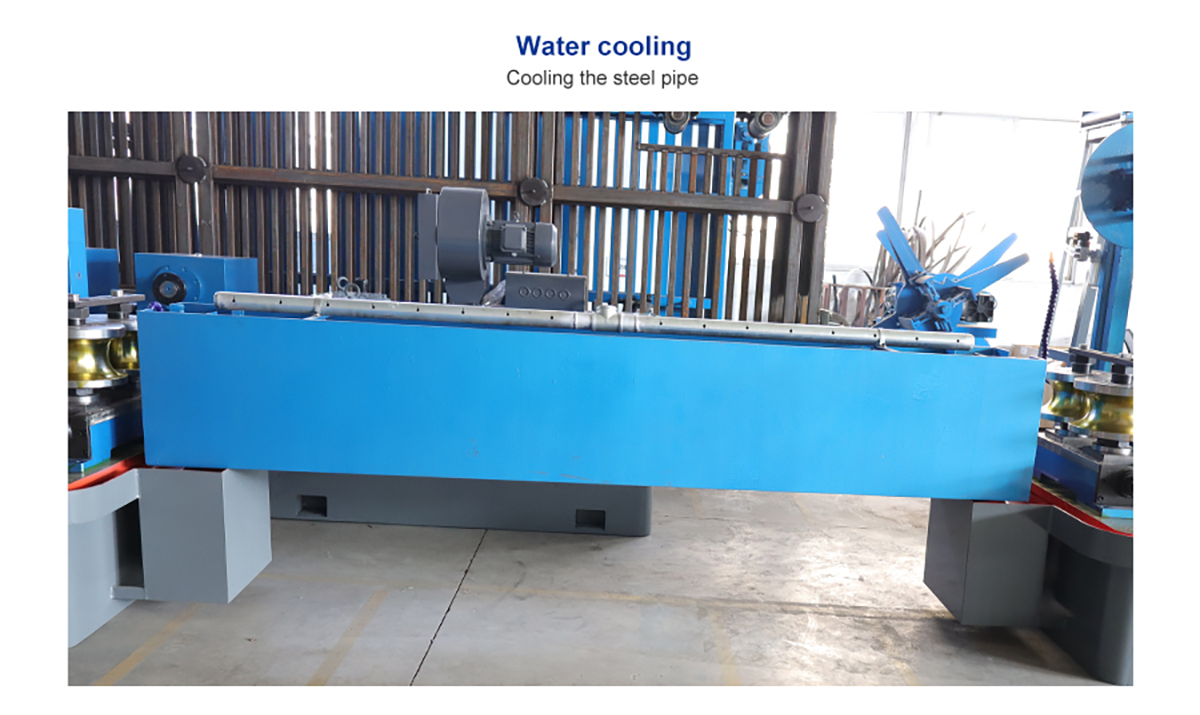

ERW pipe making machine cooling tank

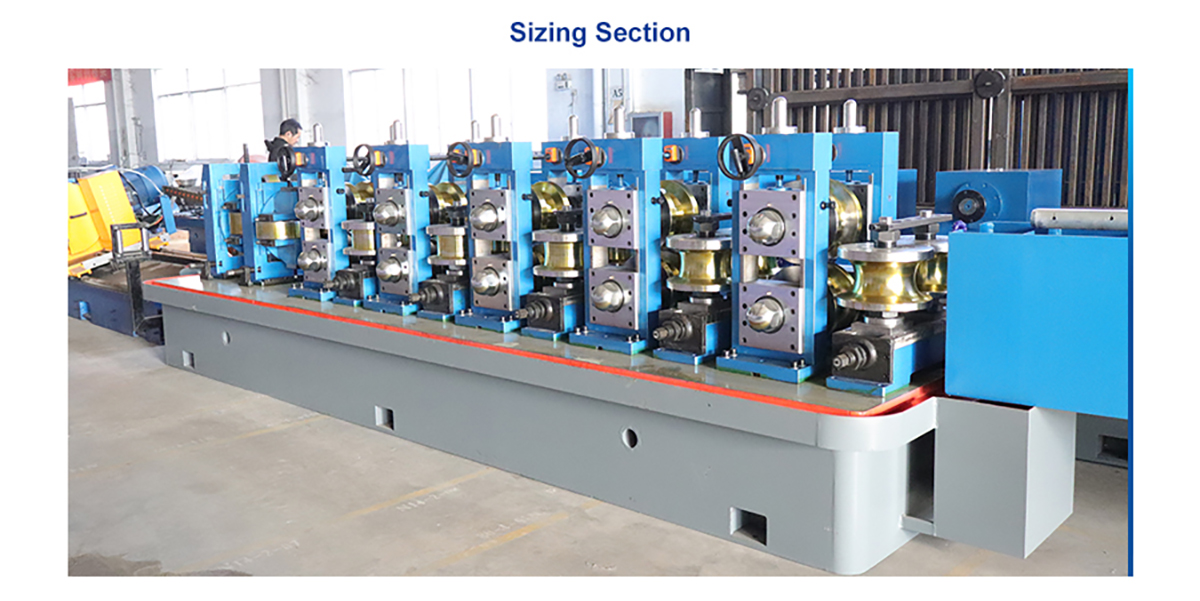

ERW pipe making machine sizing section

Cold Saw Cutter

ERW pipe making machine run-out table

ERW Pipe Making Machine Appliaction

The HF89 High Frequency ERW Pipe Mill is designed for efficient production of round welded steel pipes from 48 to 114 mm in diameter, with wall thicknesses from 1.2 to 4.0 mm and production speeds of 20–70 m/min.For water supply and drainage, the HF89 can be configured for the production of round welded steel pipes used in water distribution and drainage systems. For natural gas applications, the pipe mill can be configured according to the required steel grade, pipe specification, applicable standard and testing requirements. The same production platform can also be used for fire protection pipes and heating system pipes when the corresponding material and production requirements are met.

ERW pipe mill for fluid and gas transmission
