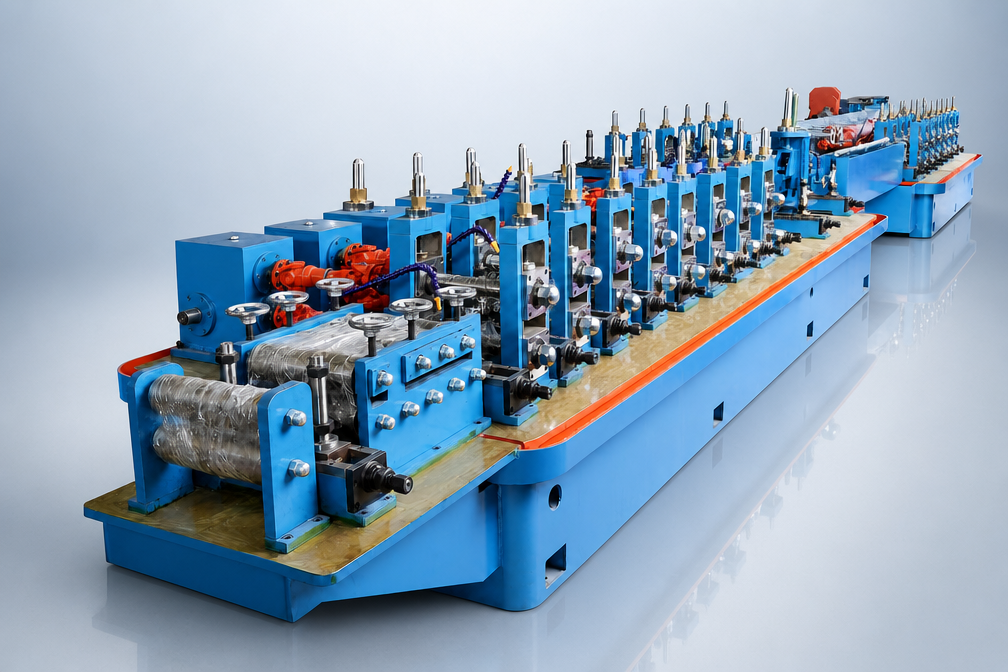

High Frequency Tube Mill for Greenhouse And Agricultural Tube

The HF76K127 High Frequency Tube Mill is designed for efficient production of round welded steel tubes used in greenhouse structures and agricultural applications. The mill produces round tubes from 48 to 127 mm in diameter, with wall thicknesses from 1.2 to 3.5 mm and production speeds of 20–70 m/min.

Greenhouse Tube Making Machine Product Features

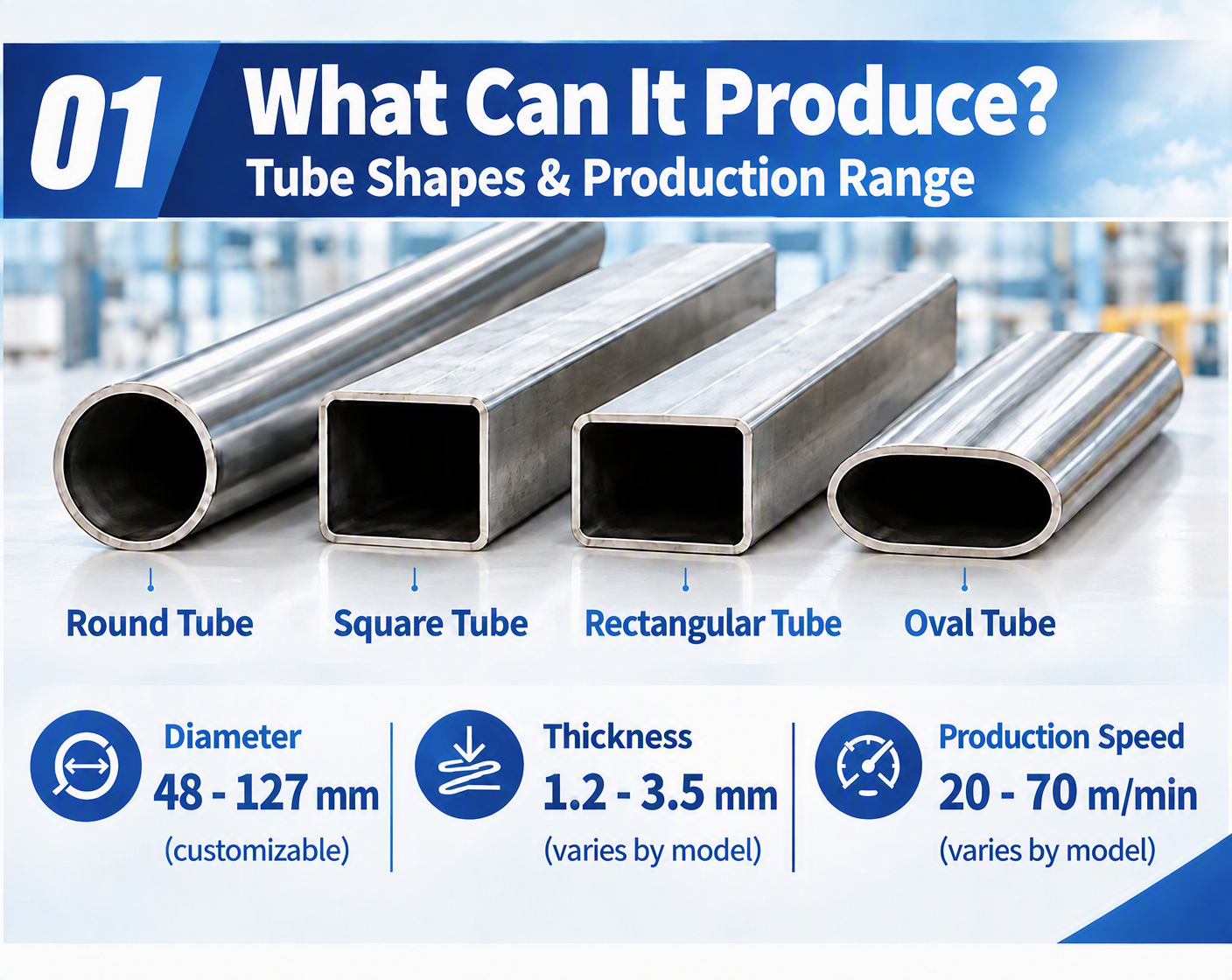

01PRODUCTION RANGE

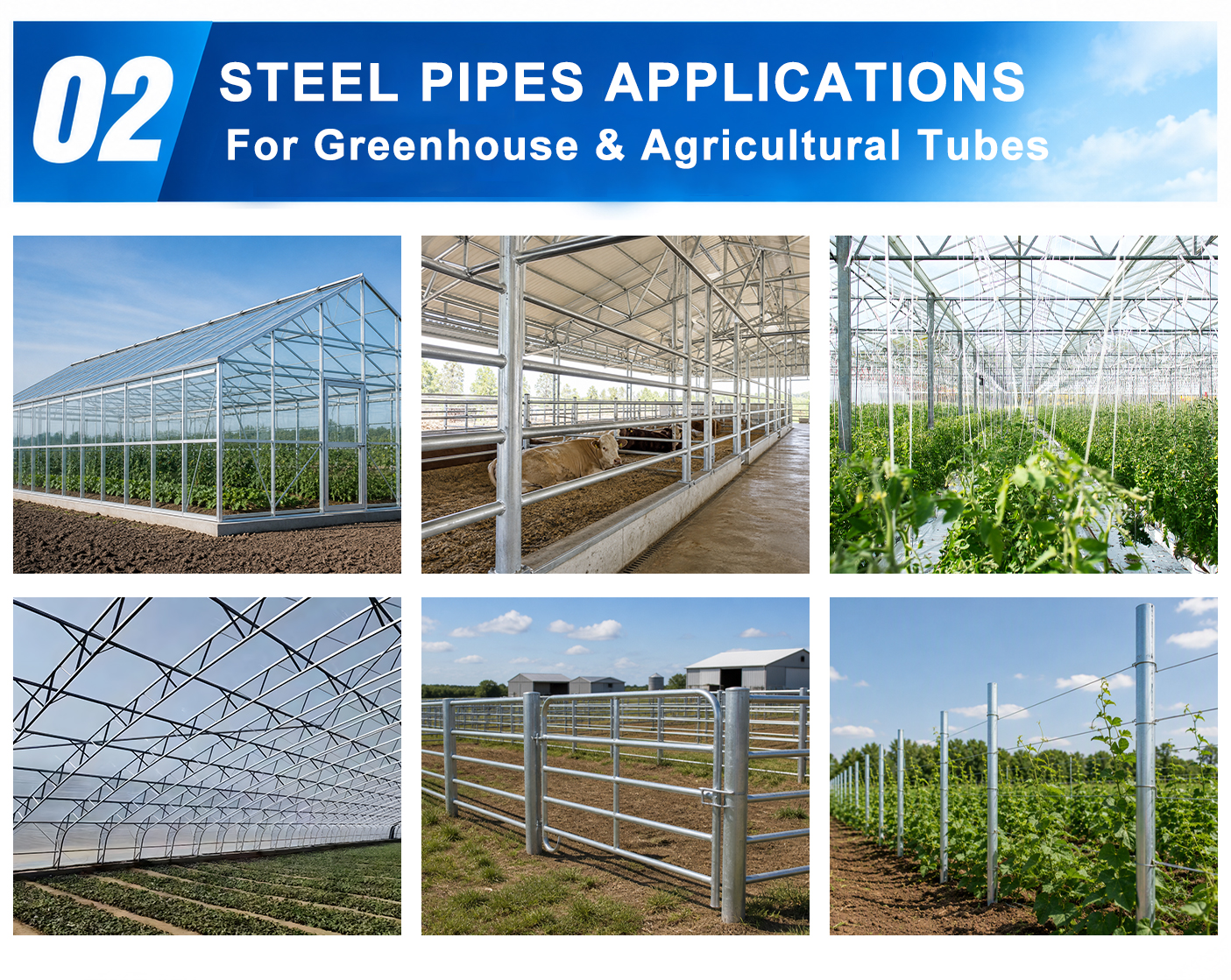

02PIPE APPLICATIONS
03PIPE MATERIALS
04TUBE MILL PRODUCTION PROCESS
05FEATURES AND ADVANTAGES
06COMPLETE TUBE MILL SOLUTION

Greenhouse Tube Making Machine Product parameters

Greenhouse Tube Production Line Product Parameters
Machine Model	HF76K127
Round Pipe Diameter	48mm-127mm
Square Pipe Diameter	38mm38mm-100mm100mm
Square Pipe Diameter	30mm50mm-80mm130mm
Round Pipe Thickness	1.0mm-3.5mm
Square Pipe Thickness	1.0mm-3.0mm
Production Speed	20-70m/min
Main Motor Power	200KW
High Frequency Power	300KW
Material	Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.
Machine Configuration	1.double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7.rolling molds 8.high frequency appliances

Greenhouse Tube Making Machine Product structure diagram

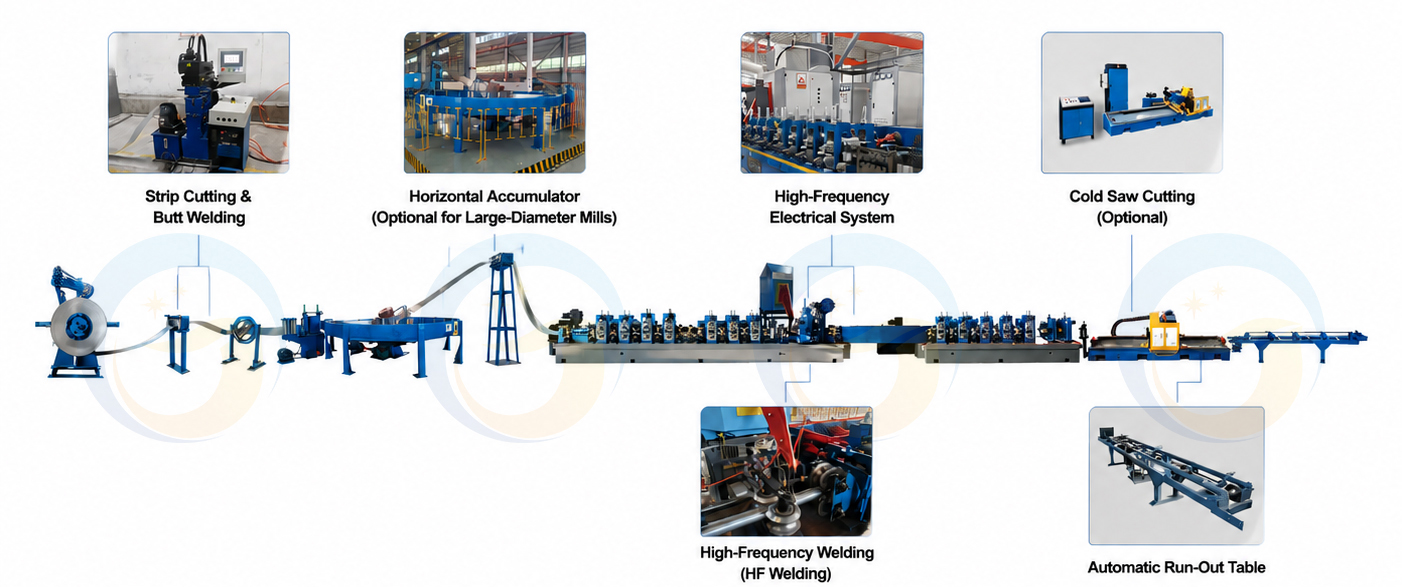

high frequency tube mill for greenhouse tubes

greenhouse tube mill production line

Complete Greenhouse Tube Mill Line Production Process:

Raw Material (Steel Strip Coil) → Coil Uncoiler → Strip Cutting & Butt Welding → Accumulator → Strip Feeding & Forming → High-Frequency Welding → External Weld Bead Removal → Cooling Water Tank → Sizing & Straightening → Flying Saw Cutting → Run-Out Table → Manual Stacking & Bundling → Inspection → Warehousing

Greenhouse Pipe Making Machine Structural Anatomy Diagram

high frequency tube mill for greenhouse tubes

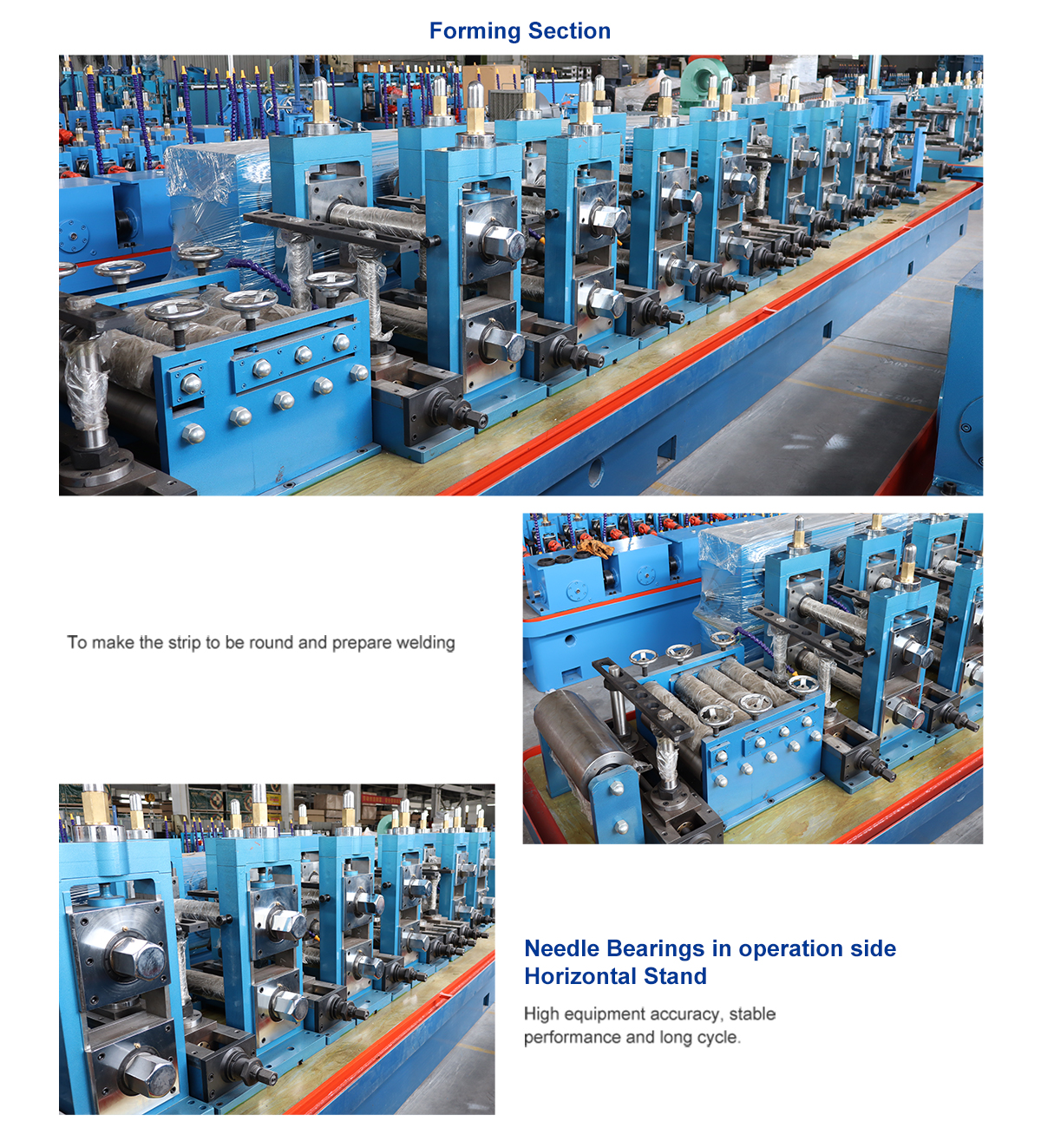

greenhouse tube mill forming section

High Frequency Welding Machine

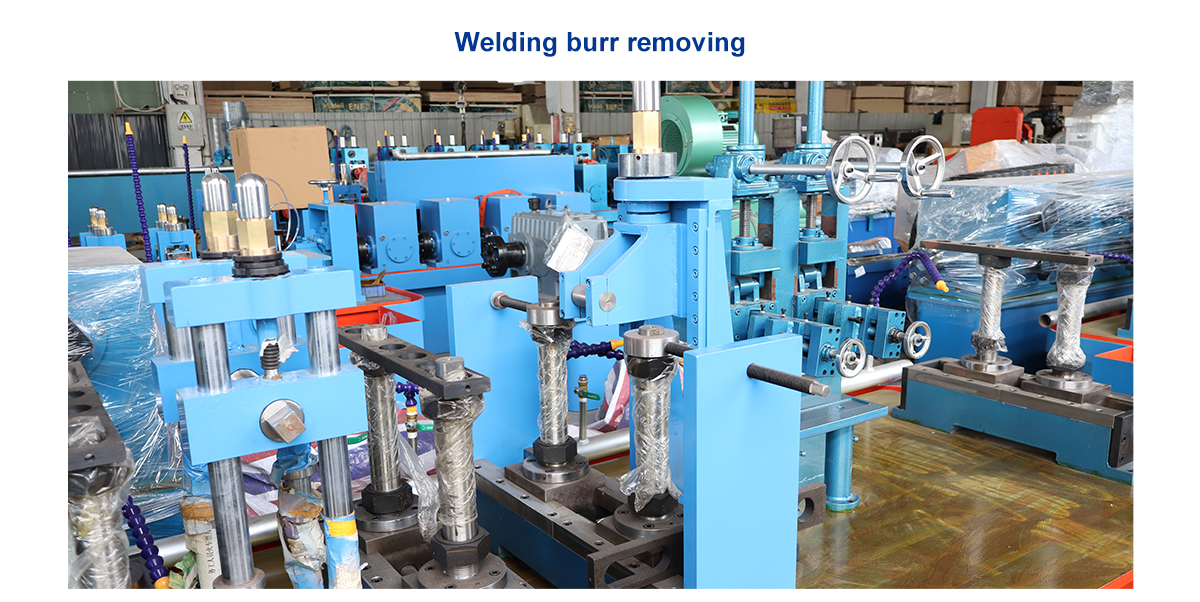

greenhouse tube mill welding burr removing

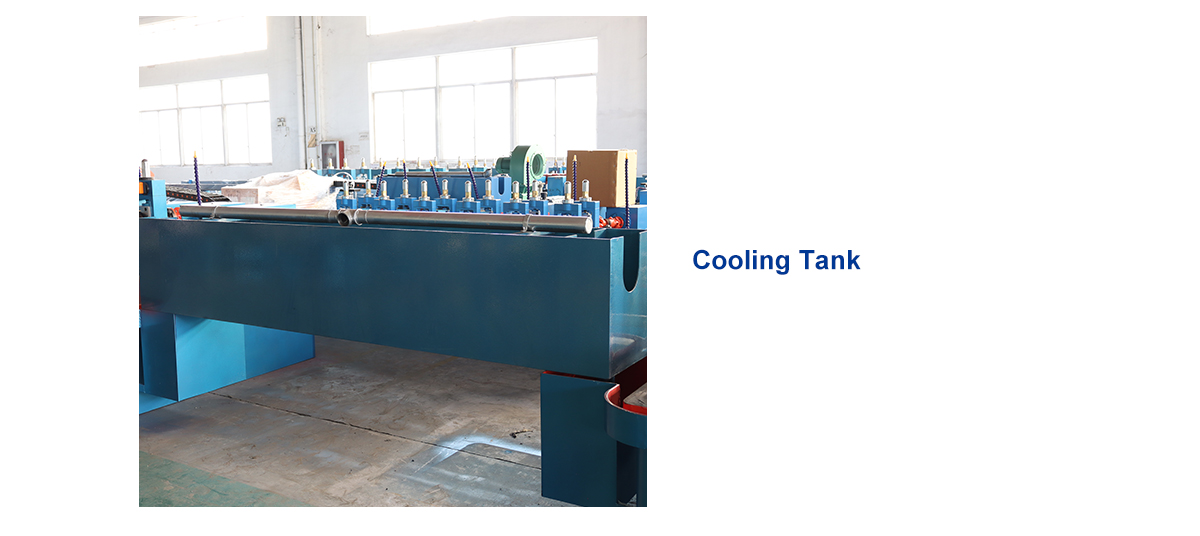

greenhouse tube mill cooling tank

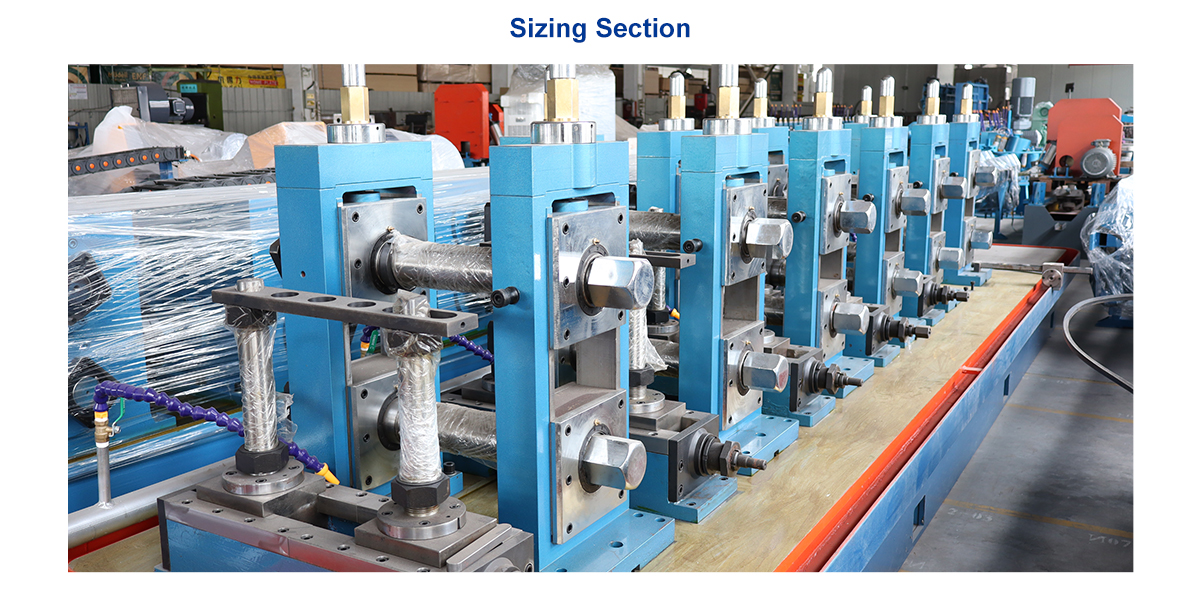

ERW greenhouse tube mill

Hot Saw Cutter

greenhouse tube mill run-out table

Greenhouse Pipe Making Machine Appliaction

TThe HF76K127 High Frequency Tube Mill is designed for efficient production of round welded steel tubes from 48 to 127 mm in diameter, with wall thicknesses from 1.2 to 3.5 mm and production speeds of 20–70 m/min. It is suitable for producing greenhouse structural tubes, agricultural steel tubes, farm structure tubes and other round welded tubes used in agricultural infrastructure.

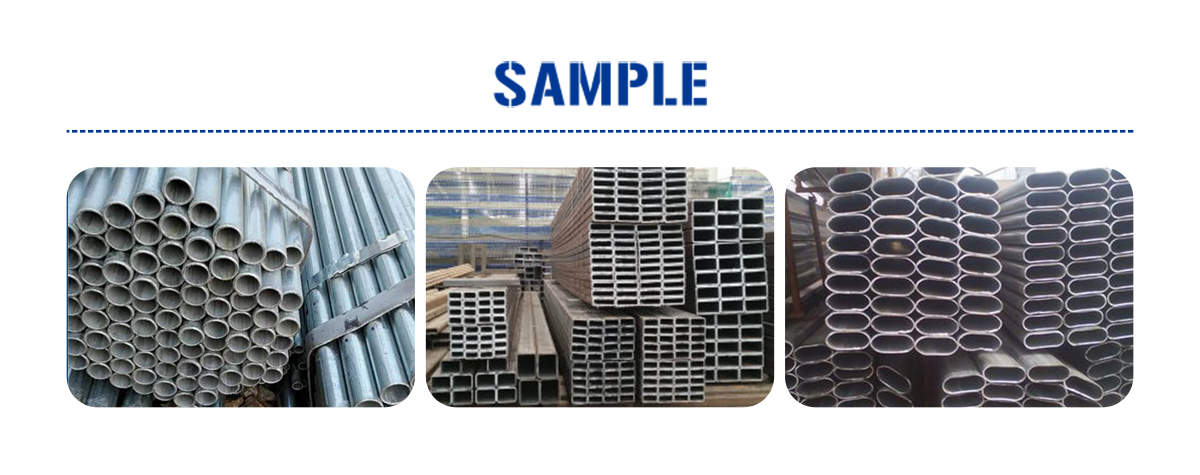

greenhouse tube mill application

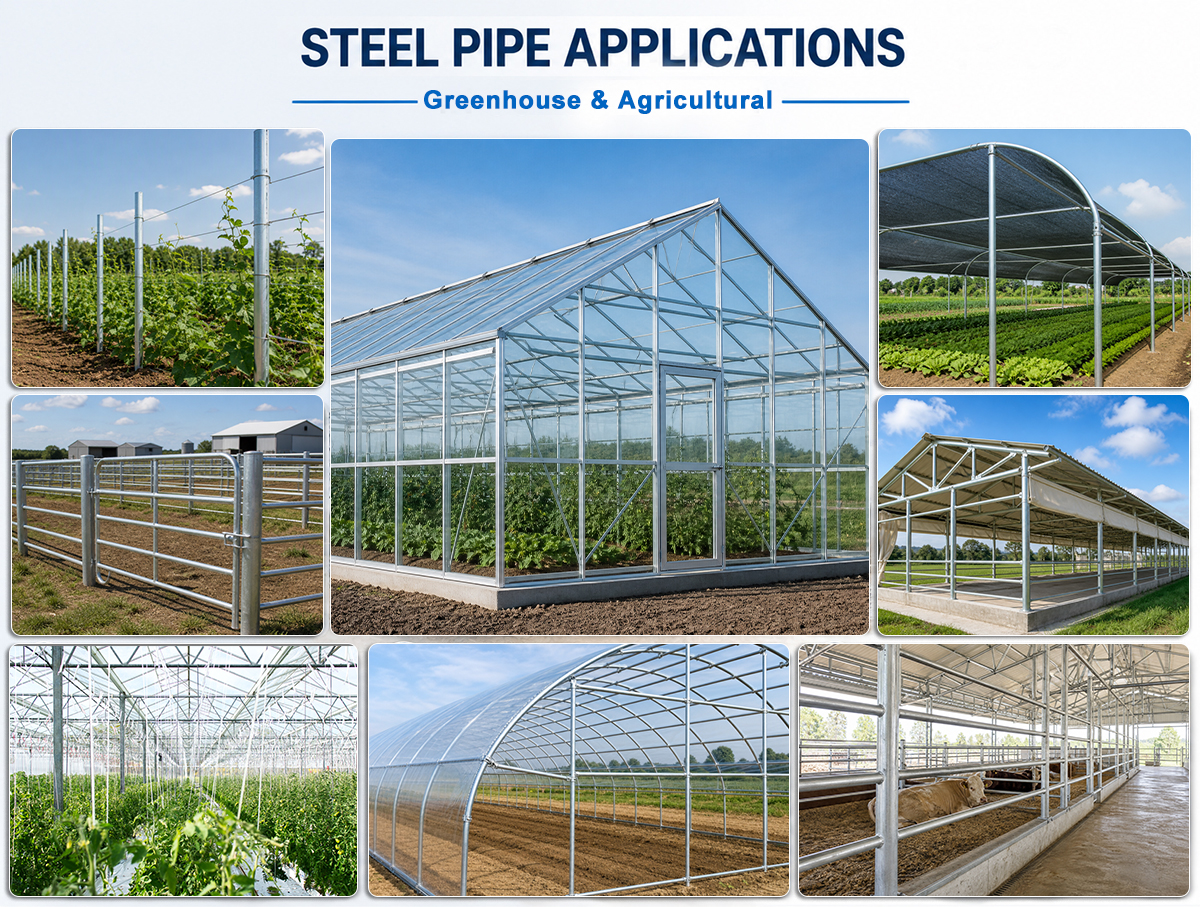

high frequency welded tube mill for greenhouse tubes
